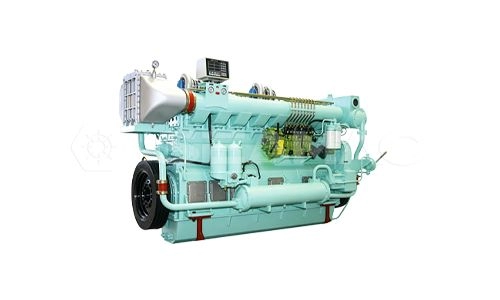

ZICHAI Z8180ZLCZ Series Marine Engine

The Zichai Z8180ZLCZ series marine diesel engines are developed based on decades of experience in marine propulsion R&D and manufacturing. Featuring a robust power core, these highly reliable products offer a power range of 419 kW to 800 kW and a speed range of 1000 to 1500 rpm. Specifically engineered for the demanding maritime operating environment, these engines ensure stable performance under prolonged heavy-load conditions. They fully comply with the International Maritime Organization’s Tier II emission standards. Achieving outstanding fuel efficiency across all operating conditions, they significantly reduce vessel operating costs. Simple routine maintenance effectively minimizes downtime, enhancing vessel availability.

coming soon…

coming soon…

coming soon…

General Specifications of Z8180ZLCZ Series

Rated Power :419-800 kW
Rated Speed :1000-1500 rpm
Cylinder Bore :
180 mm
Piston Stroke :
210 mm
Cylinder No. :8
Total Displacement :42.75 L
Compression Ratio :14.5
Minimum Stable Speed :400-675 rpm
Mean Piston Speed :7.00-10.50 m/s



Z8180ZLCZ-1800 kWZ8180ZLCZ-1
Z8180ZLCZ-4661 kWZ8180ZLCZ-4
Z8180ZLCZ-5A735 kWZ8180ZLCZ-5A
Z8180ZLCZ-8588 kWZ8180ZLCZ-8
Z8180ZLCZ-9A661 kWZ8180ZLCZ-9A
Z8180ZLCZ-12514 kWZ8180ZLCZ-12
Z8180ZLCZ-13B570 kWZ8180ZLCZ-13B
Z8180ZLCZ-16419 kWZ8180ZLCZ-16

Engine Model

Rated Power/kW

100200300400500600700800
Zichai Z8180ZLCZ Series Catalogue

Engine Model

Rated Power

Rated Speed

Engine Model

Rated Power

Rated Speed

Z8180ZLCZ-1800 kW1500 rpmZ8180ZLCZ-4661 kW1500 rpm
Z8180ZLCZ-5A735 kW1350 rpmZ8180ZLCZ-8588 kW1350 rpm
Z8180ZLCZ-9A661 kW1200 rpmZ8180ZLCZ-12514 kW1200 rpm
Z8180ZLCZ-13B570 kW1000 rpmZ8180ZLCZ-16419 kW1000 rpm
——END——

Zichai Z8180ZLCZ Series Marine Engine

This is the list of all series of Zichai Z8180ZLCZ Series Marine Engine.
