SDEC W Marine Auxiliary Engine

SDEC W series engines are newly designed to meet the high power requirements of marine supporting power, and are carefully crafted according to SAIC MOTOR manufacturing standards. This series of products has the characteristics of “three highs and three lows” of high reliability, high power, high adaptability, low fuel consumption, low engine fuel consumption, and low emission, and is widely used in various types of inland water transport ships, fishing boats, engineering ships, transportation Ships and other ships and 500-600 kW marine generator sets.
SDEC W series marine main engine is an inline 6 cylinder, 32.8 L/38.2 L,Four valves, double booster structure, sufficient and efficient air intake, electronically controlled unit pump matching design ECU, fuel injector, etc., effectively improving combustion and emissions, smooth engine operation, good economy, strong instantaneous loading capacity, power increased by 10% , with a maximum torque of 6400N•m, low fuel consumption and high torque in common working conditions, and the lowest fuel consumption can reach 190 g/kw•h.
Users can choose according to the different working conditions of the ship, among which the 33W marine engine is suitable for high-speed working conditions, and the 38W is suitable for supporting low-medium speed working conditions. Engine starting mode, power output interface, sea water pump with different flow rate, anti-corrosion cooling system, electric pre-supply oil pump and other configurations are optional.

General Specifications of W Marine Auxiliary Engine

Engine Type:	6 cylinder
Displacement:	38.2 L
*Bore Stroke:**	180 mm * 250 mm
Advertised Power:	490 – 668 kW @ 1000 RPM
Peak Torque:	N/A
Rated Speed:	1000 RPM
Emissision:	N/A
Aspiration :	TC & Intercooled
Dry Weight:	4200 kg
*Dimension (L W * H):**	2487 mm * 1196 mm * 1946 mm

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

SDEC W Marine Auxiliary Engine Catalogue

Engine Model	Rated Power	Aspiration	Engine Model	Rated Power	Aspiration

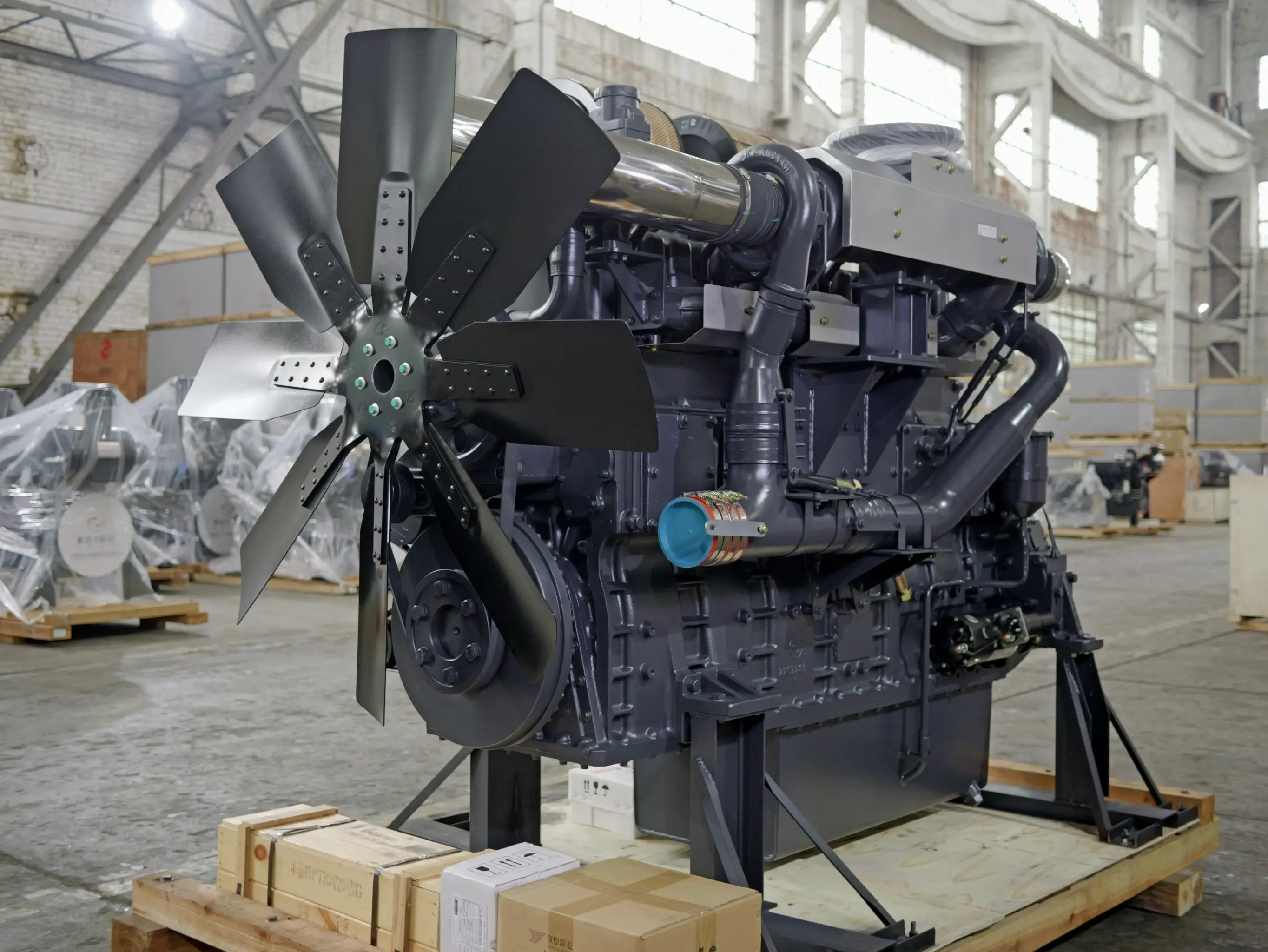

SC38W680.10CF1	490 kW @ 1000 RPM	TC & Intercooled	SC38W770.10CF1	554 kW @ 1000 RPM	TC & Intercooled

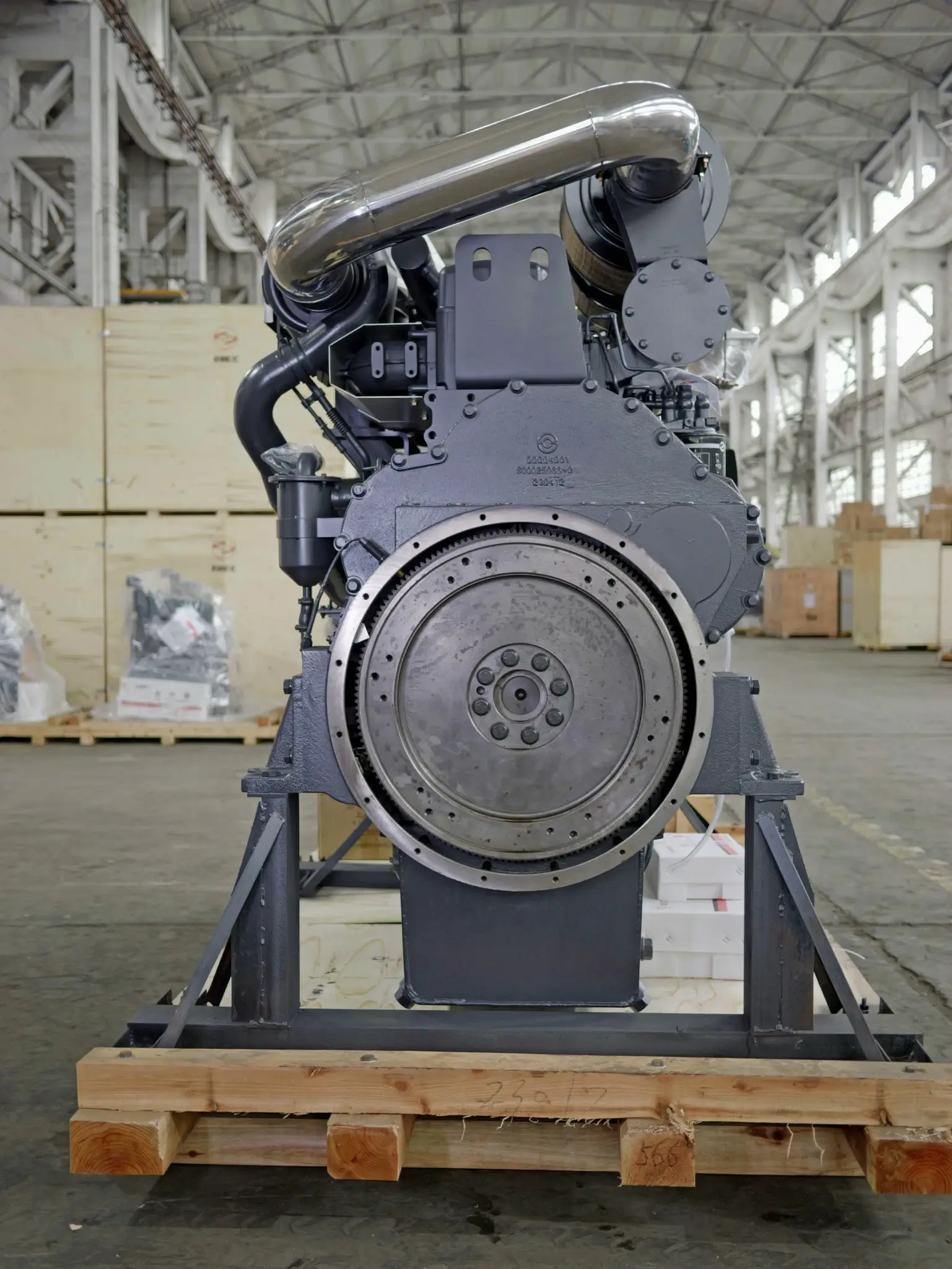

SC38W825.10CF1	593 kW @ 1000 RPM	TC & Intercooled	SC38W930.10CF1	668 kW @ 1000 RPM	TC & Intercooled

——END——



SDEC W Series Marine Auxiliary Engine

This list including all models of SDEC W Series Marine Auxiliary Engine.
Click here to find Marine Main Engine by type (Engine Fuel System & Power Range).
