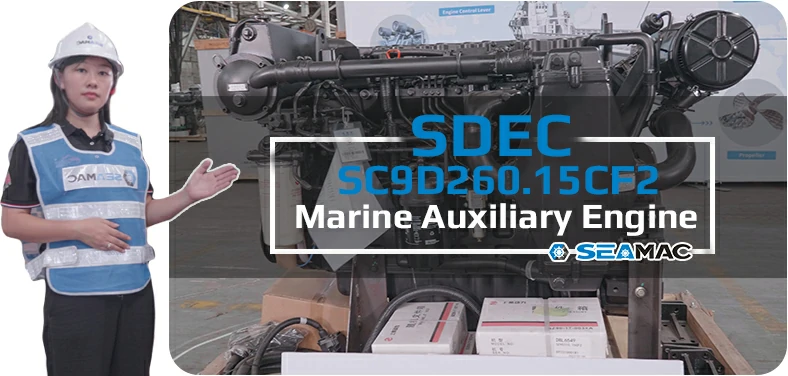

SDEC SC9D260.15CF2 Auxiliary Engine

SDEC SC9D260.15CF2 marine auxiliary engine is a 6-cylinder design, 6-cylinder engine provides enough power and fuel support for the ship to ensure the normal operation of the equipment.

SC9D260.15CF2 has a displacement of 8.8 L, larger displacement means better acceleration performance and handling stability, especially suitable for heavy-duty or high-load working environments.

The Engine has a rated power output of 189 kW, using supercharged intercooling technology, the engine can use less fuel at the same power output, reducing energy waste and thus reducing fuel consumption.

We provide all customers with full life cycle services from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to maintenance technical support.

Advantages of SC9D260.15CF2 Auxiliary Engine

  • Easy maintenance and high attendance. Integrated design of engine parts, fewer sources of failure, nationwide service network, cheap parts and sufficient supply.

  • Powerful, efficient and fuel-efficient. Four-valve structure, turbocharger matched according to the working conditions of the ship to achieve higher air intake efficiency, Japan Denso electronic control system is adopted, the maximum injection pressure is 2000 bar, the atomization is uniform, and the combustion is sufficient. The practical application has large power margin, excellent emission, low fuel consumption and low operating cost.

  • Compact structure, excellent NVH. Modular design of the engine, small size, easy to arrange the cabin, light weight, low engine noise and vibration.

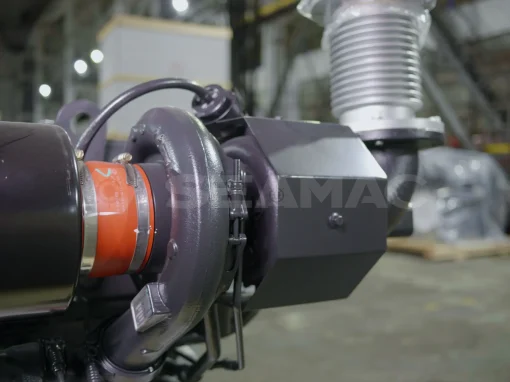

  • Rich configuration and high comfort. According to the different operating conditions of the marine engine, the configuration of the engine is optimized. Water-cooled supercharger and water-cooled exhaust pipe, flywheel interface, etc., large-capacity oil pan, etc. are optional. The ambient temperature of the engine room is low and the comfort is high.

  • High reliability and good consistency. Machining and assembly lines are controlled by MES production system and guaranteed by SPS system. The selected diesel engine parts are of high quality, high reliability and good consistency.

Technical Specifications

Model:SC9D260.15CF2
Rated Power/Speed:
189 kW @ 1500 RPM
Aspiration:
TC & Intercooled
Overload Power:208 kW
Piston Average Speed:7.2 m/s
Firing Order:1-5-3-6-2-4
Number of Cylinders:6
Compression Ratio:17 : 1
Bore * Stroke:114 mm * 144 mm
Dry Weight:950 kg
Displacement:8.8 L
Dimension (L * W * H):1476 mm * 930 mm * 1237 mm
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C
Oops! It seems that the entered tour doesn't exist. Please enter correct shortcode.

coming soon

Engine Model

Prime Power

Displacement

Aspiration

SC9D245.15CF2177 kW @ 1500 RPM8.8 LTC & Intercooled
SC9D260.15CF2189 kW @ 1500 RPM8.8 LTC & Intercooled
SC9D310.15CF2223 kW @ 1500 RPM8.8 LTC & Intercooled
——END——

General Infomation of SDEC-Shanghai Diesel SC9D260.15CF2 Marine Auxiliary Engine

Engine ModelSC9D260.15CF2Number of Cylinders6
Rated Power189 kWRated Speed1500 RPM
AspirationTC & IntercooledOverload Power208 kW
Max. No-load Stable Speed1650Compression Ratio17 : 1
Bore * Stroke114 mm * 144 mmDisplacement8.8 L
Piston Average Speed7.2 m/sDry Weight950 kg
Cooling MethodSea and Fresh Water Double Circulation SystemDimensions (L * W * H)1476 mm * 930 mm * 1237 mm
Fuel SystemElec. HVCREmission StandardsTier II
——END——

Performance Data of SDEC-Shanghai Diesel SC9D260.15CF2 Marine Auxiliary Engine

Firing Order1-5-3-6-2-4Stable Droop10 %
Min. Stable Working Speed900 RPMFuel Injection Advance AngleElectric Control
Max. Fuel Inlet Temp45 ℃Max. Fuel Inlet Flow5.75 L/min
Max. Fuel Return Temp80 ℃Max. Fuel Return Flow4.75 L/min
Intake Pipe Intake Pressure200 kPaAir Intake Flow987 kg/h
Exhaust Gas Flow1036 kg/hExhaust Gas Temp580 ℃
Thermostat Opening Temp82 ℃Thermostat Full Open Temp95 ℃
Max. Allowable Intake Resistance4 kPaMax. Allowable Exhaust Resistance6 kPa
——END——

Accessories Specifications of SDEC-Shanghal Diesel SC9D260.15CF2 Marine Auxiliary Engine

DynamoRated Power1.5 kW
Rated Voltage28 V
WiringTwo-Wire System
Rated Current55 A
Starter MotorRated Power9 kW
Rated Voltage24 V
RotationClockwise from Drive End
WiringTwo-Wire System
Instrument SystemLow Oil Pressure Alarm Value0.16 MPa
Oil Pressure Low Stop Value0.20 MPa
High Water Temp. Alarm Value95
Oil Temp. High Alarm Value115
Overspeed Alarm Value115 % of Rated Speed
Overspeed Stop Value120 % of Rated Speed
——END——

Coming Soon

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
