SDEC S6R2 Marine Auxiliary Engines
The S6R2 series power station products are derived from the military ship platform products of Shanghai and have been further developed based on the products and systems of Mitsubishi Heavy Industries. These products are designed to be the most cost-effective solutions for matching power units ranging from 575 to 645 kW.
The S6R2 series engines have been meticulously designed and crafted to meet the high power demands of the generator set support market. Each technical parameter has achieved the current international advanced level, showcasing the series’ commitment to cutting-edge technology.
Described by Shanghai Automotive Industry Corporation (SAIC), this series of engines is characterized by its compact structure, high reliability, excellent fuel efficiency, low noise emissions, and visually appealing design. These features make the engines well-suited for a wide range of applications in the power generation sector.
Manufactured in compliance with industry-leading standards, the S6R2 series engines are the preferred power source for both prime and standby generator sets. This endorsement underscores their reliability and performance as top-tier supporting power solutions for diverse power generation needs.
General Specifications of S6R2 Marine Auxiliary Engines
| Engine Type: | 6-cylinder |
| Displacement: | 29.96 L |
| Bore * Stroke: | 170 mm * 220 mm |
| Advertised Power: | 575 – 645 kW @ 1500 RPM |
| Peak Torque: | N/A |
| Rated Speed: | 1500 RPM |
| Emissision: | N/A |
| Aspiration : | Turbo Charger/Air-air intercooler |
| Dry Weight: | 2900 kg |
| Dimension (L * W * H): | 1946 mm * 1051 mm * 1578 mm |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Engine Model | Rated Power | Aspiration | Engine Model | Rated Power | Aspiration | |
| S6R2-PTA-C | 575 kW @ 1500 RPM | TC/Water-air intercooler | S6R2-PTAA-C | 645 kW @ 1500 RPM | TC/Air-air intercooler | |
| ——END—— | ||||||
SDEC S6R2 Series Marine Auxiliary Engines
This list including all models of SDEC S6R2 Series Marine Auxiliary Engines.
Click here to find Marine Auxiliary Engines by type (Engine Speed).

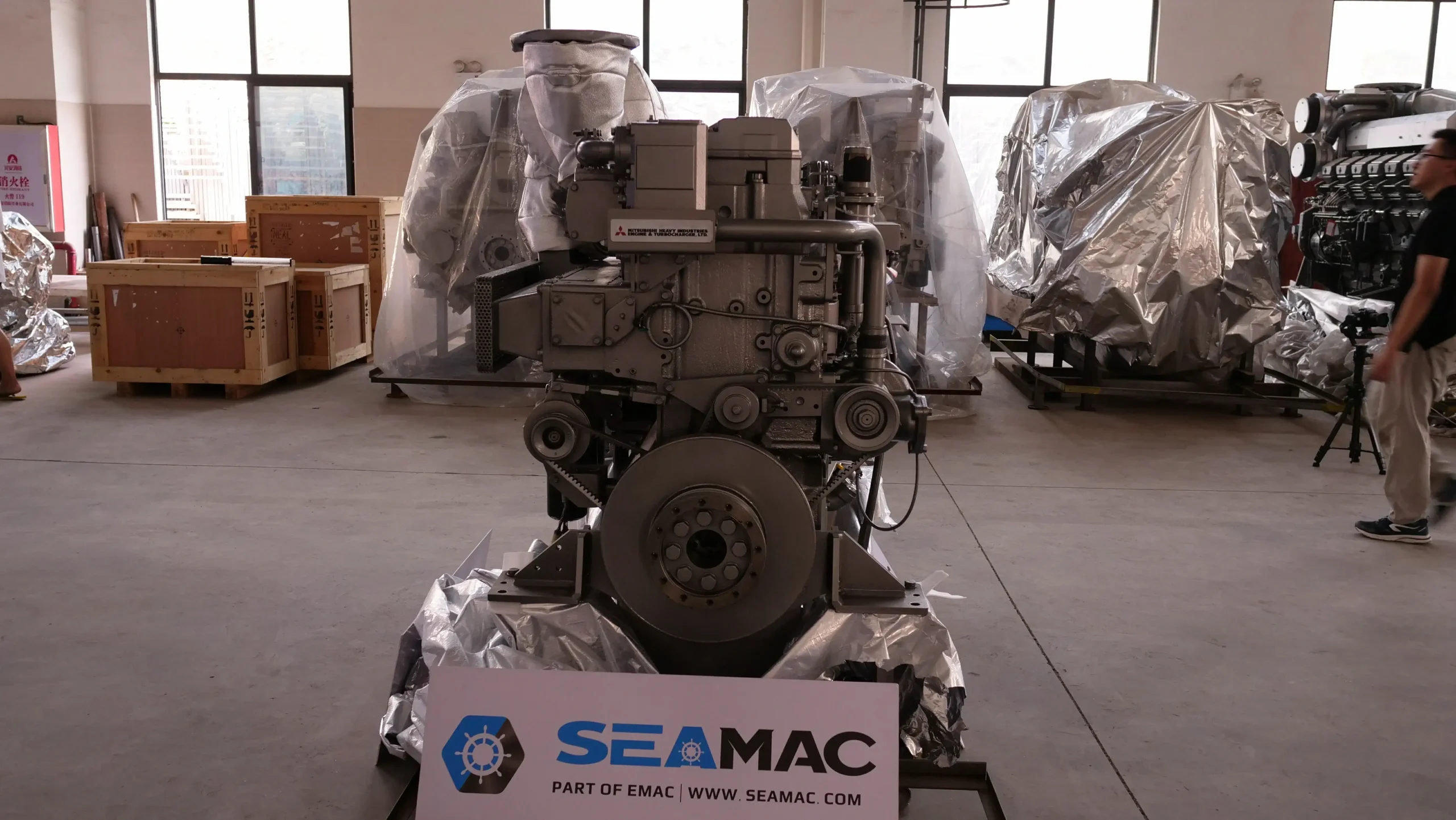

SDEC Mitsubishi S6R2-PTAA-C Marine Auxiliary Engine
Rated Power: 645 kW @ 1500 RPM
Displacement : 29.96 L
Number of Cylinders : 6
Cylinder Type : Wet Liner
Combustion Type : Direct Injection

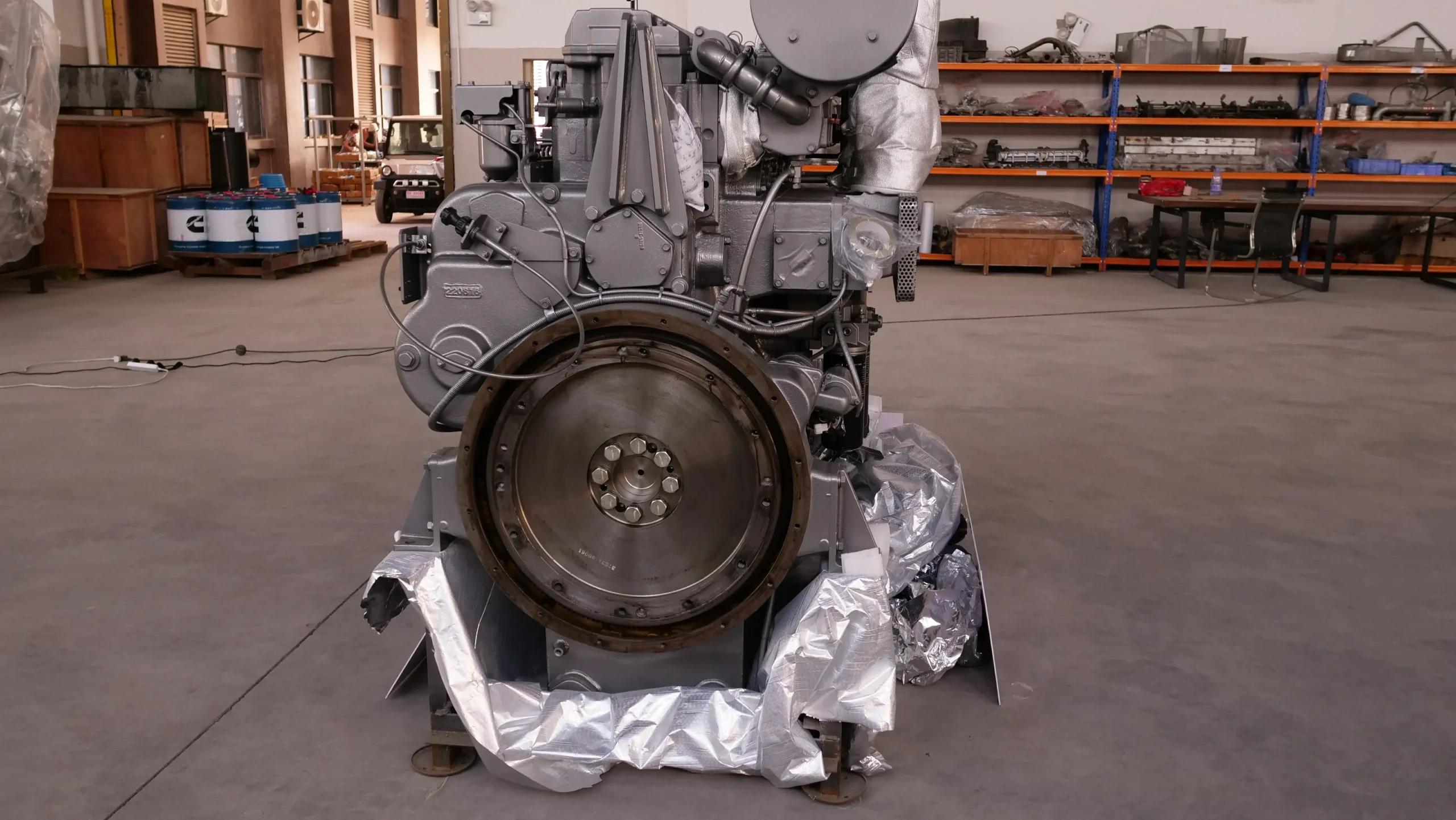

SDEC Mitsubishi S6R2-PTA-C Marine Auxiliary Engine
Rated Power : 575 kW @ 1500 RPM
Displacement : 29.96 L
Number of Cylinders : 6
Cylinder Type : Wet Liner
Combustion Type : Direct Injection
