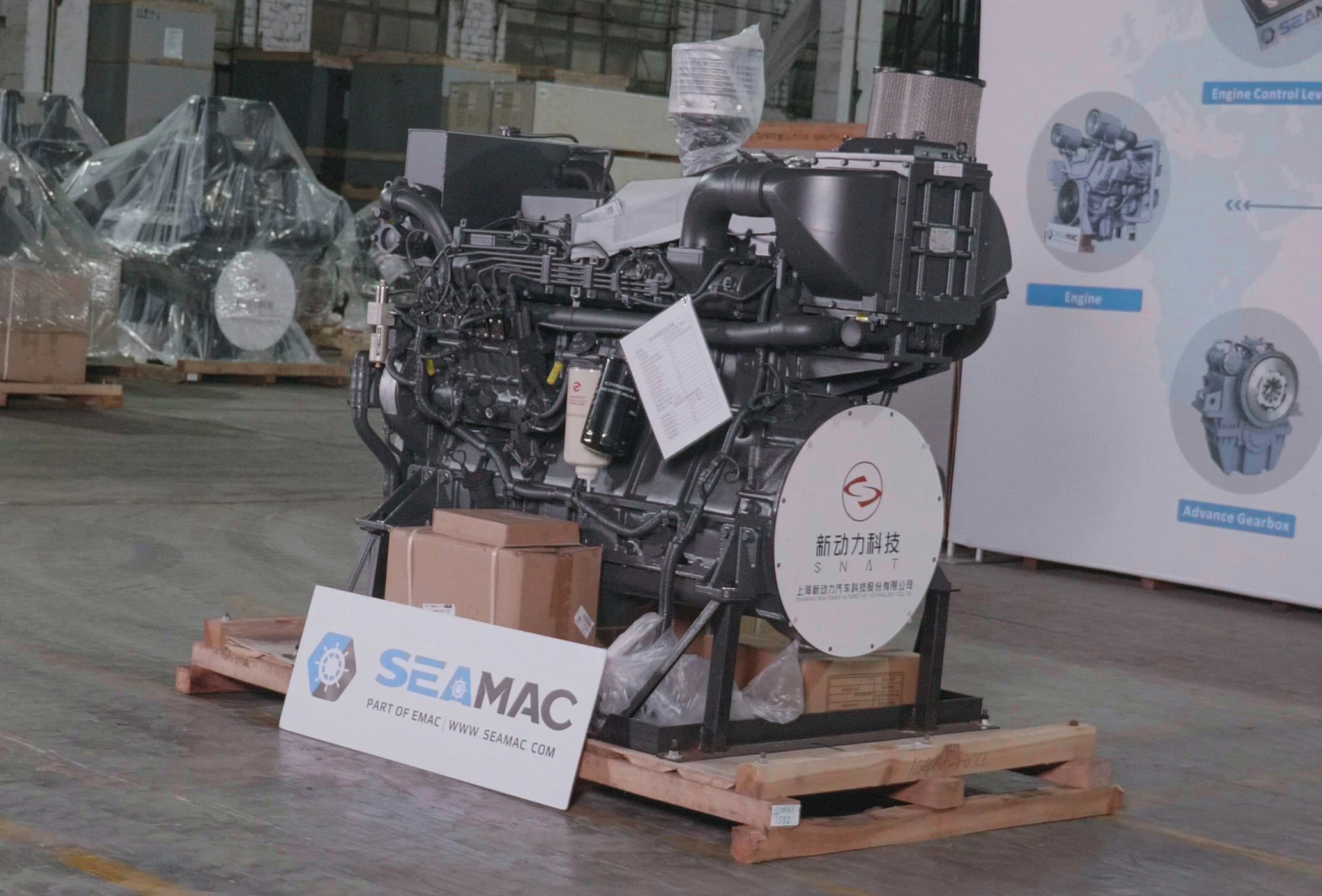

SDEC G Marine Auxiliary Engine

SEDC G series engines are self-developed, modularized and improved designs according to the characteristics of the marine engine market, and manufactured according to SAIC MOTOR manufacturing standards. This series of engines has been greatly upgraded in terms of product quality, reliability, economy, vibration and noise, and appearance. The stroke of SC15G has been extended to 165 mm. Most of the parts of the engine are common to the original model, and are widely used in various types of inland water transport ships, fishing boats, engineering ships and other ships, as well as 150-300 kW marine generator sets.
SDEC G series marine main engine is an inline 6cylinder, 12.8 L/14.2 L four-stroke engine with a bore of 135 mm and a stroke of 165 mm. In addition, the G series marine main engine also adopts advanced electronic speed control system, air-air supercharger and turbocharger technology, so that it has excellent fuel economy and low emission characteristics.
The engine not only complies with international emission standards such as Tier I and Tier II of the International Maritime Organization, but also adopts advanced exhaust gas treatment devices to minimize emissions and protect the marine environment.
The series has a wide power coverage and a torque reserve of over 20%. Matching design of high pressure oil pump, ECU, supercharger, injector, piston and other performance parts. Electronic control unit precise control, high injection pressure, small speed fluctuation, strong power.

General Specifications of G Marine Auxiliary Engine

Engine Type:	6-cylinder
Displacement:	14.16 L
*Bore Stroke:**	135 mm * 165 mm
Advertised Power:	302 – 346 kW @ 1500 RPM
Peak Torque:	N/A
Rated Speed:	1500 RPM
Emissision:	N/A
Aspiration :	TC & Intercooled
Dry Weight:	1350 kg
*Dimension (L W * H):**	1680 mm * 884 mm * 1550 mm

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

SDEC G Marine Auxiliary Engine Catalogue

Engine Model	Rated Power	Aspiration	Engine Model	Rated Power	Aspiration
SC15G420.15CF1	302 kW @ 1500 RPM	TC & Intercooled	SC15G480.15CF1	346 kW @ 1500 RPM	TC & Intercooled
