SDEC E Marine Main Engine
SDEC E series engine is a brand new power product jointly designed by the company and AVL company and built according to SAIC MOTOR standard. This series of engines has the advantages of high reliability, high efficiency, low fuel consumption, low emission, etc., and is widely used in inland water transport ships, fishing boats, engineering ships and other ships, as well as 200~300 kW marine generator sets.
SDEC E series engine is a platform product built according to the standards of SAIC Motor. This series of marine diesel engines has the advantages of compact structure, high reliability, strong power and low vibration and noise.
In addition, the E series marine main engine also adopts advanced electronic speed control system, air-air supercharger and turbocharger technology, which makes it have excellent fuel economy and low emission characteristics.The engine not only complies with international emission standards such as Tier I and Tier II of the International Maritime Organization, but also adopts advanced exhaust gas treatment devices to minimize emissions and protect the marine environment.
Single cylinder four valve technology, large intake, full combustion, wide range of economic operation. Middle injector, full atomization of fuel, wide economic fuel consumption range.
Oil coolers and filters are modular and compact. The diesel engine has strong instantaneous loading ability and strong environmental adaptability, which can cope with all kinds of working conditions. Diesel modular design, no valve clearance adjustment, long maintenance interval, convenient and fast service.
General Specifications of E Marine Main Engine
| Engine Type: | 6 cylinder |
| Displacement: | 11.8 – 12.8 L |
| Bore * Stroke: | 128 mm * 153 mm |
| Advertised Power: | 220 -368 kW @ 1500 – 1800 RPM |
| Peak Torque: | N/A |
| Rated Speed: | 1500 – 1800 RPM |
| Emissision: | N/A |
| Aspiration : | TC & Intercooled |
| Dry Weight: | 1350 kg |
| Dimension (L * W * H): | 1738 mm * 896 mm * 1213 mm |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Engine Model | Rated Power | Peak Torque | Engine Model | Rated Power | Peak Torque | |
| SC12E300.15CA1 | 295 HP @ 1500 RPM | 1980 N.m @ 1000 RPM | SC12E360.15CA1 | 355 HP @ 1500 RPM | 1980 N.m @ 1000 RPM | |
| SC12E360.18CA1 | 355 HP @ 1800 RPM | 1980 N.m @ 1000 RPM | SC12E360.21CA1 | 355 HP @ 2100 RPM | 1800 N.m @ 1200 RPM | |
| SC12E400.18CA1 | 394 HP @ 1800 RPM | 1800 N.m @ 1200 RPM | SC12E400.21CA1 | 394 HP @ 2100 RPM | 2000 N.m @ 1100 RPM | |
| SC12E420.18CA1 | 425 HP @ 1800 RPM | 1980 N.m @ 1000 RPM | SC12E420.21CA1 | 425 HP @ 2100 RPM | 2100 N.m @ 1100 RPM | |
| SC12E460.21CA1 | 455 HP @ 2100 RPM | 2200 N.m @ 1100 RPM | SC12E280.15CA2 | 271 HP @ 1500 RPM | 1680 N.m @ 1000 RPM | |
| SC12E280.18CA2 | 271 HP @ 1800 RPM | 1600 N.m @ 1000 RPM | SC12E300.15CA2 | 288 HP @ 1500 RPM | 1880 N.m @ 1000 RPM | |
| SC12E300.18CA2 | 288 HP @ 1800 RPM | 1600 N.m @ 1000 RPM | SC12E330.15CA2 | 319 HP @ 1500 RPM | 1980 N.m @ 1000 RPM | |
| SC12E330.18CA2 | 319 HP @ 1800 RPM | 1800 N.m @ 1000 RPM | SC12E360.18CA2 | 349 HP @ 1800 RPM | 1800 N.m @ 1000 RPM | |
| SC12E360.21CA2 | 349 HP @ 2100 RPM | 1600 N.m @ 1100 RPM | SC12E400.18CA2 | 386 HP @ 1800 RPM | 2000 N.m @ 1000 RPM | |
| SC12E400.21CA2 | 386 HP @ 2100 RPM | 1800 N.m @ 1100 RPM | SC12E420.15CA2 | 355 HP @ 1500 RPM | 1980 N.m @ 1000 RPM | |
| SC12E460.18CA2 | 456 HP @ 1800 RPM | 1980 N.m @ 1000 RPM | SC12E460.21CA2 | 448 HP @ 2100 RPM | 2200 N.m @ 1100 RPM | |
| SC13E420.15CA2 | 413 HP @ 1500 RPM | N/A | SC13E420.18CA2 | 413 HP @ 1800 RPM | N/A | |
| SC13E460.18CA2 | 448 HP @ 1800 RPM | N/A | SC13E500.15CA2 | 484 HP @ 1500 RPM | N/A | |
| SC13E500.18CA2 | 484 HP @ 1800 RPM | N/A | SC13E560.18CA2 | 494 HP @ 1800 RPM | N/A | |
| ——END—— | ||||||
SDEC E Series Marine Main Engine
This list including all models of SDEC E Series Marine Main Engine.
Click here to find Marine Main Engine by type (Engine Fuel System & Power Range).

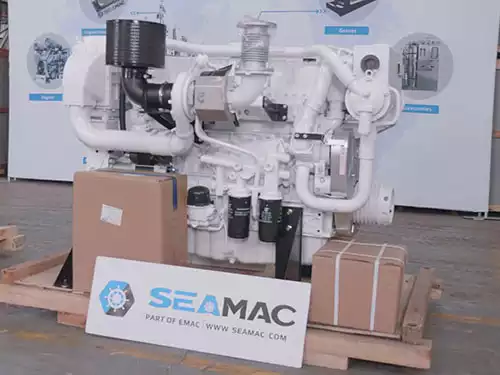

SDEC SC12E300.15CA1 Marine Engine
Prime Power : 220 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

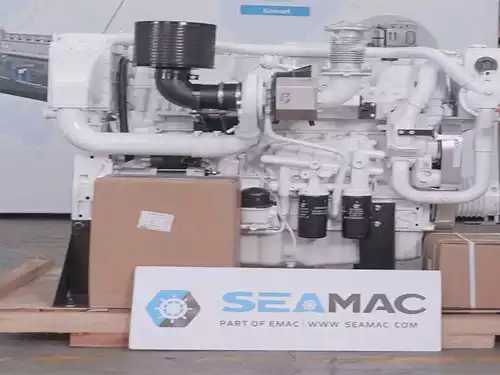

SDEC SC12E360.15CA1 Marine Engine
Prime Power : 265 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

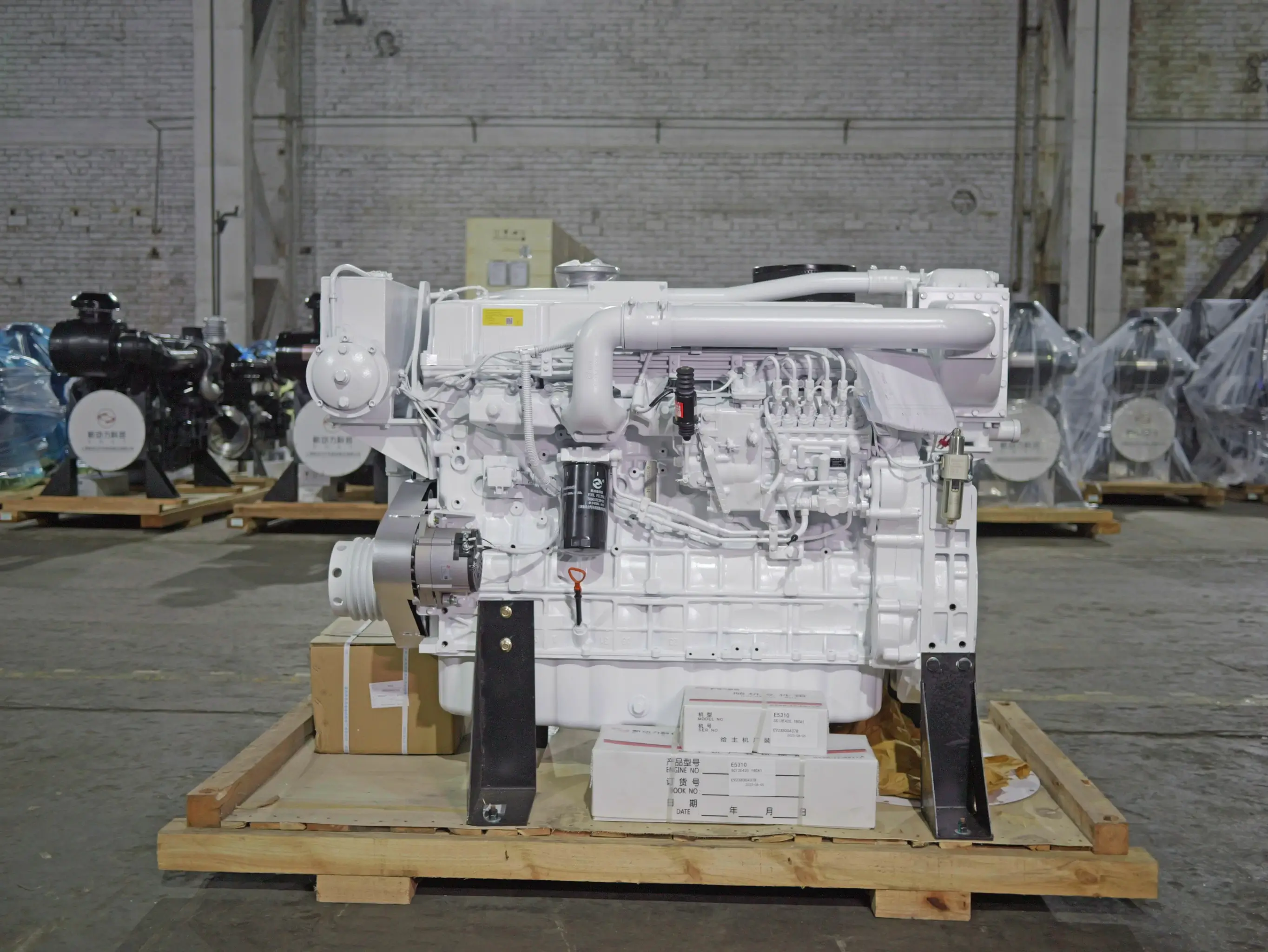

SDEC SC12E360.18CA1 Marine Engine
Prime Power : 265 kW @ 1854 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg
SDEC SC12E360.21CA1 Marine Engine
Prime Power : 265 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

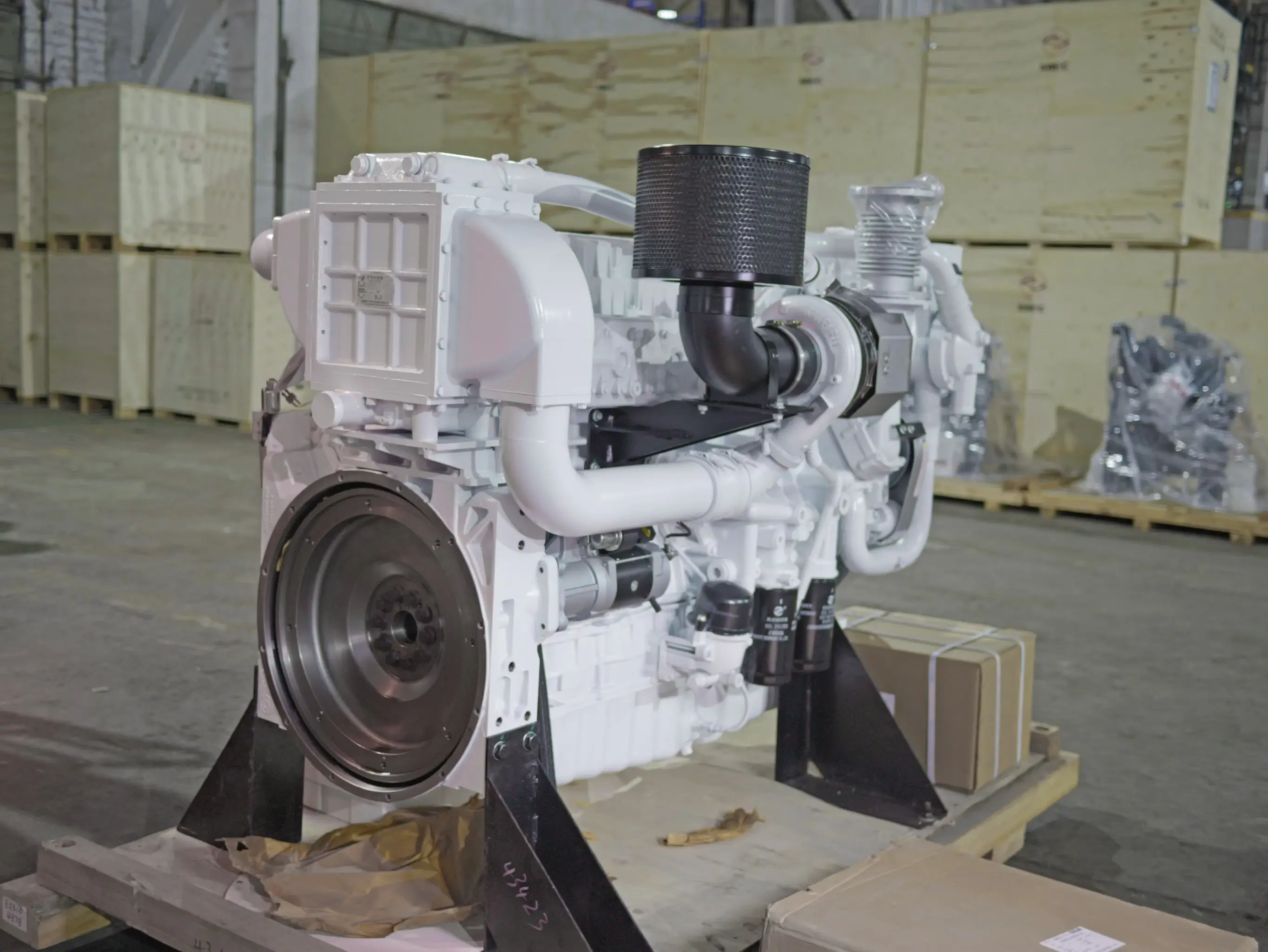

SDEC SC12E400.18CA1 Marine Engine
Prime Power : 294 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

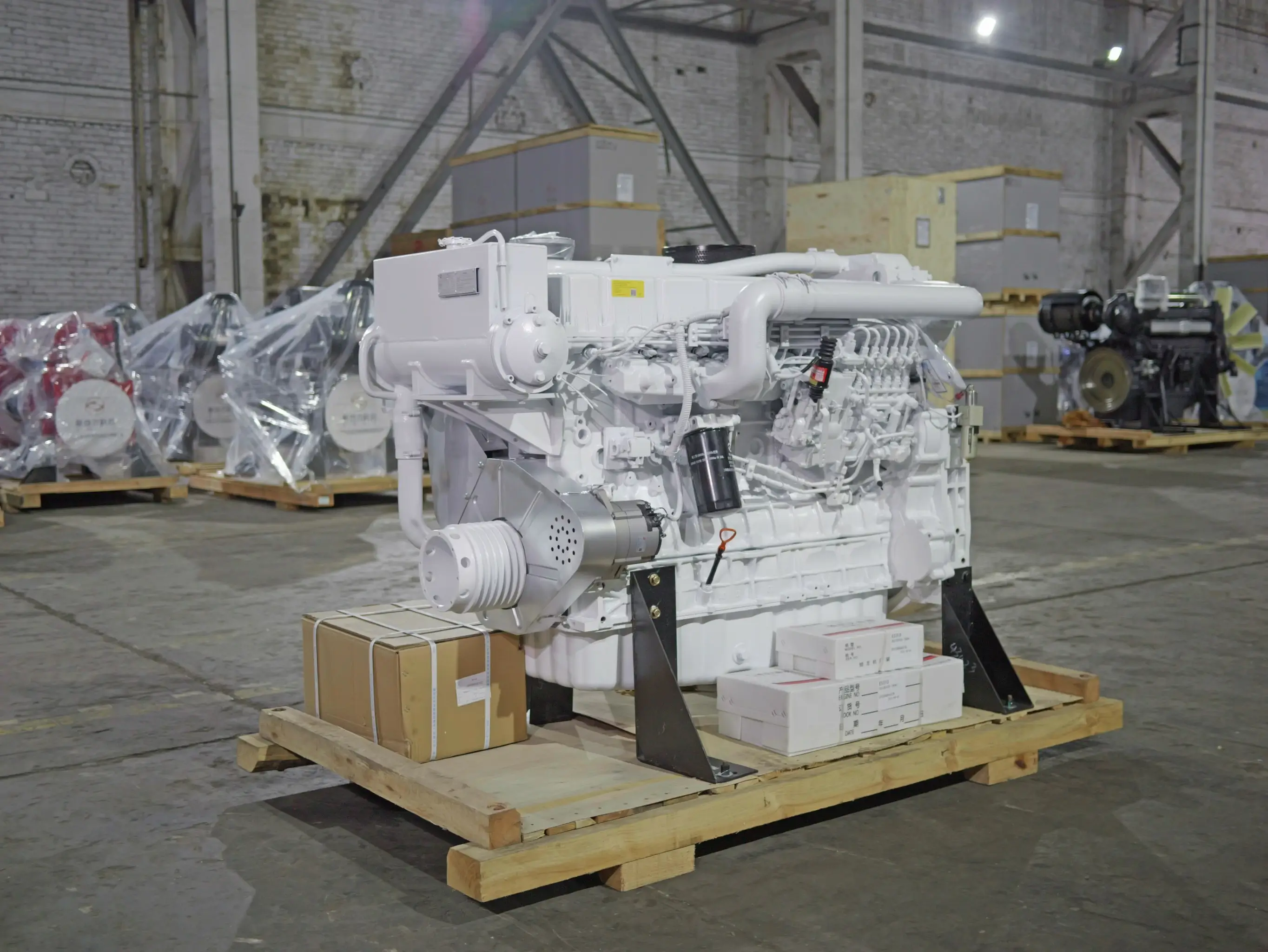

SDEC SC12E400.21CA1 Marine Engine
Prime Power : 294 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

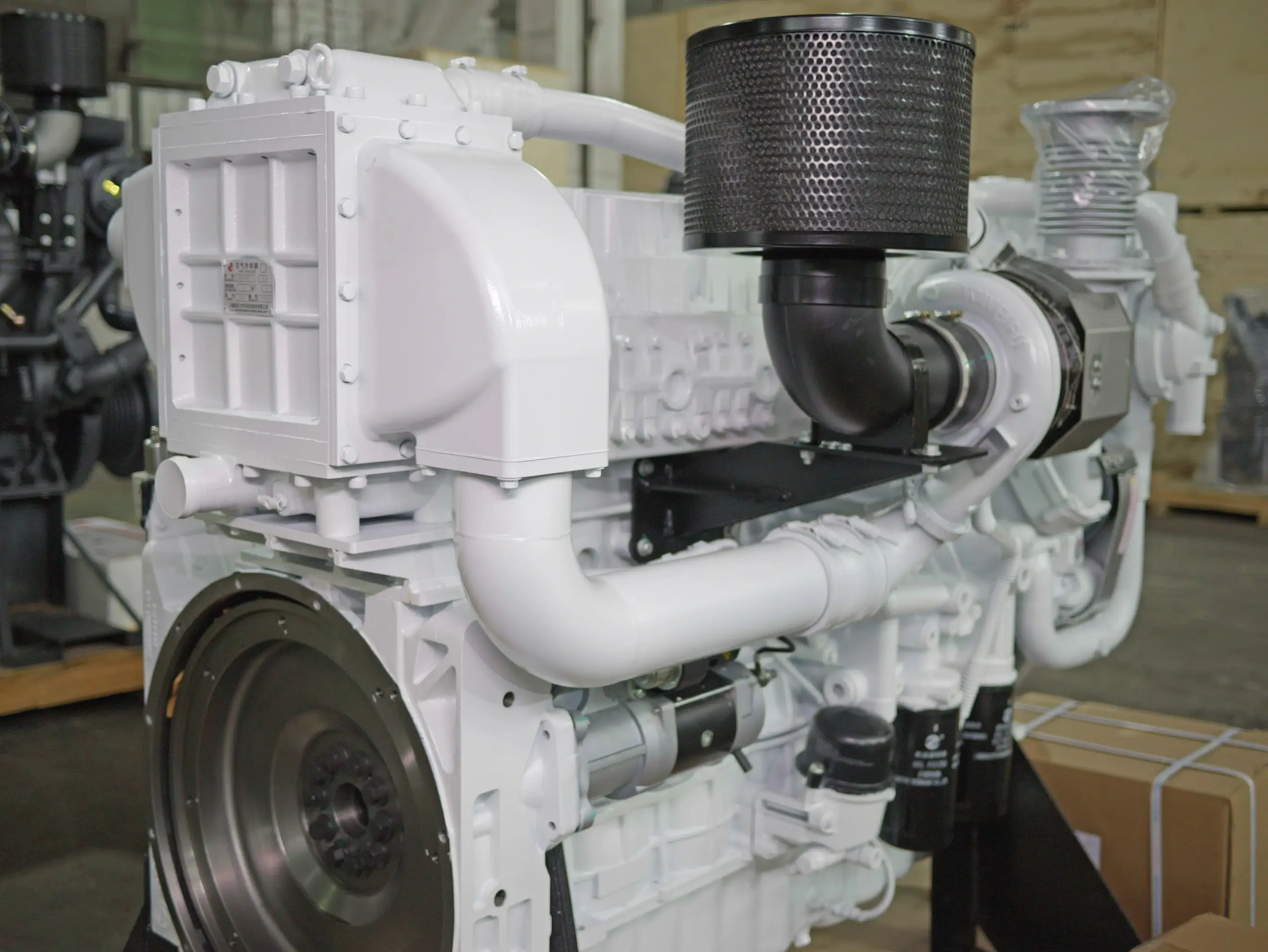

SDEC SC12E420.18CA1 Marine Engine
Prime Power : 317 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

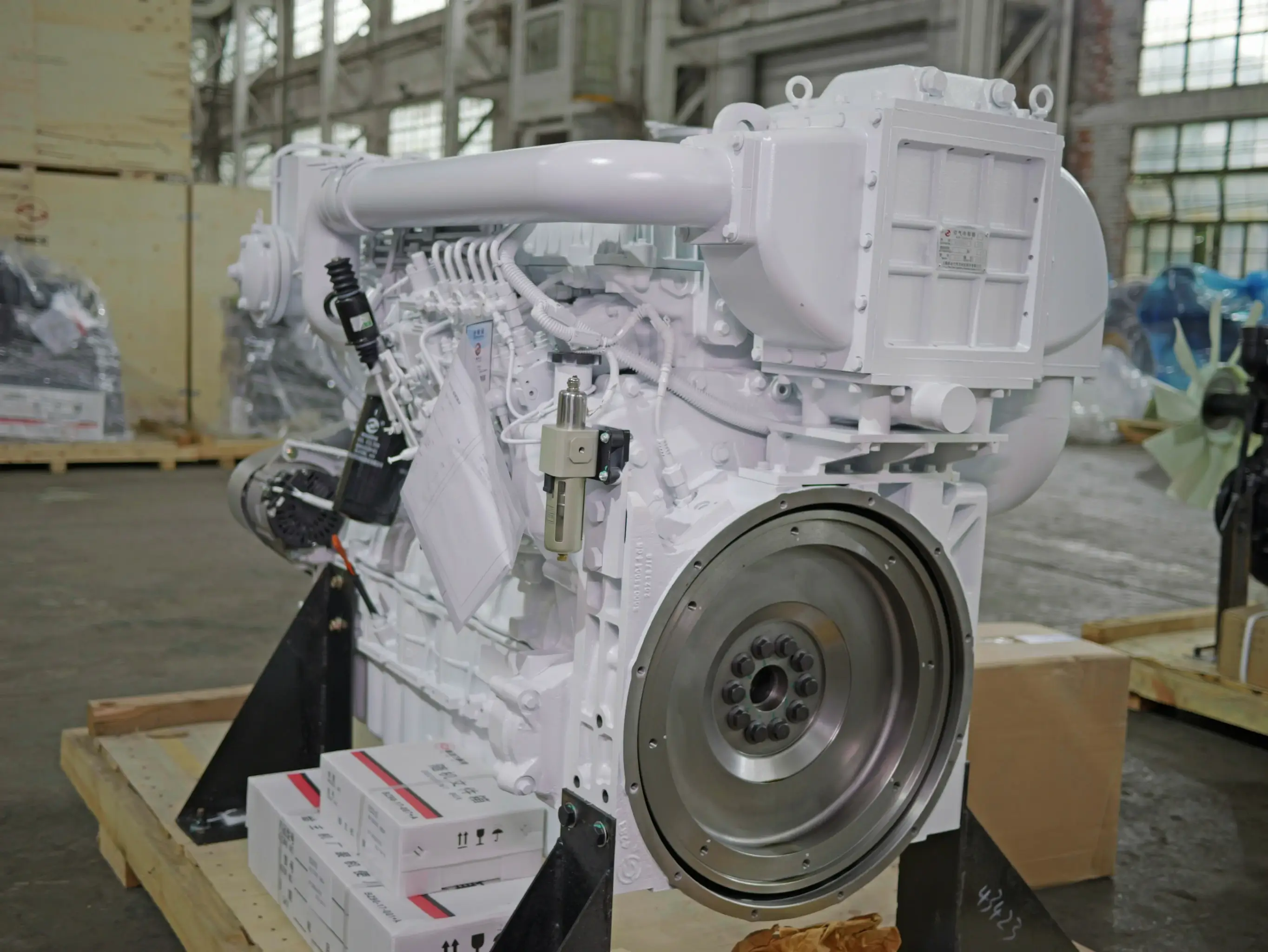

SDEC SC12E420.21CA1 Marine Engine
Prime Power : 317 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

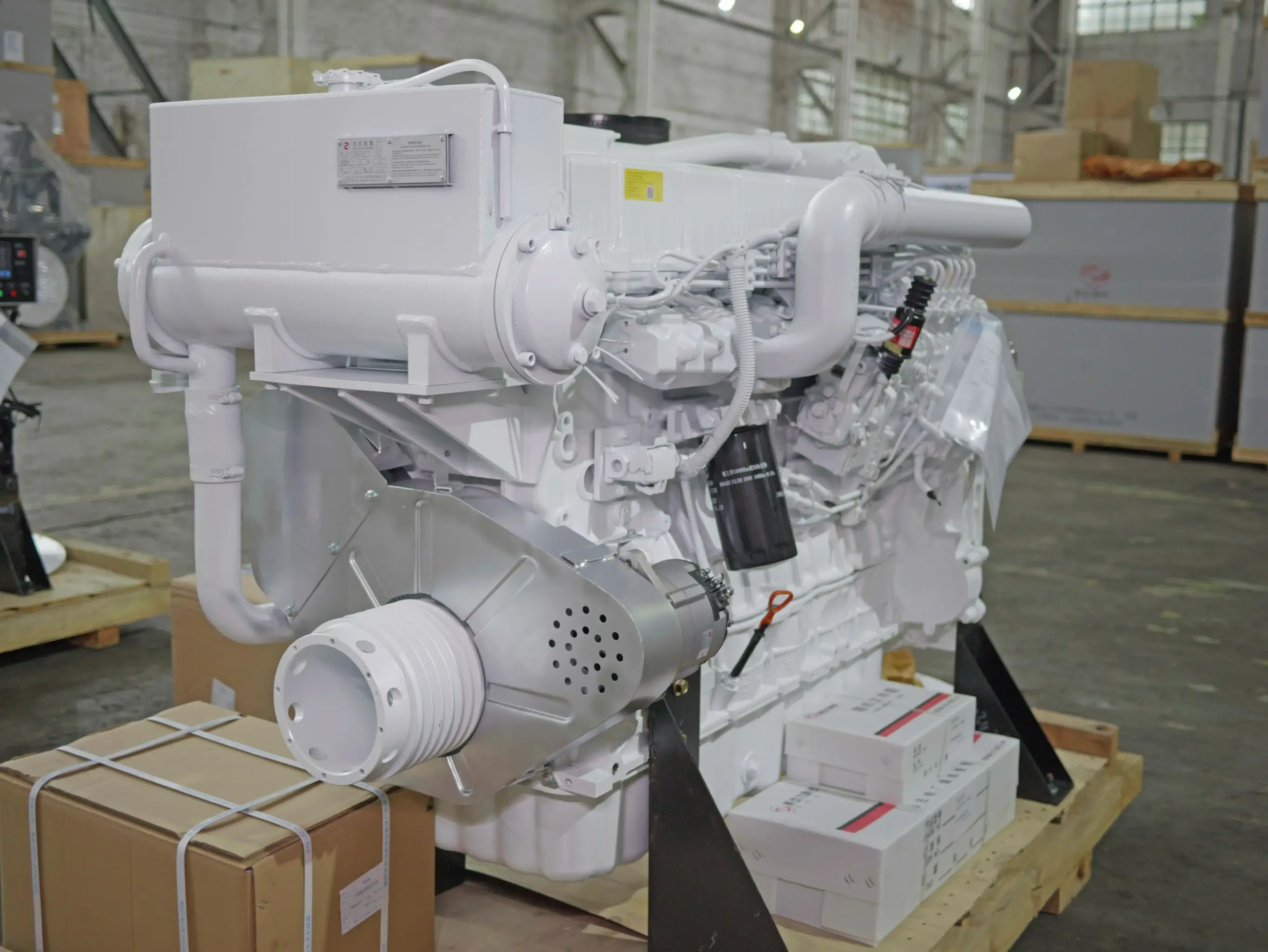

SDEC SC12E460.21CA1 Marine Engine
Prime Power : 340 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

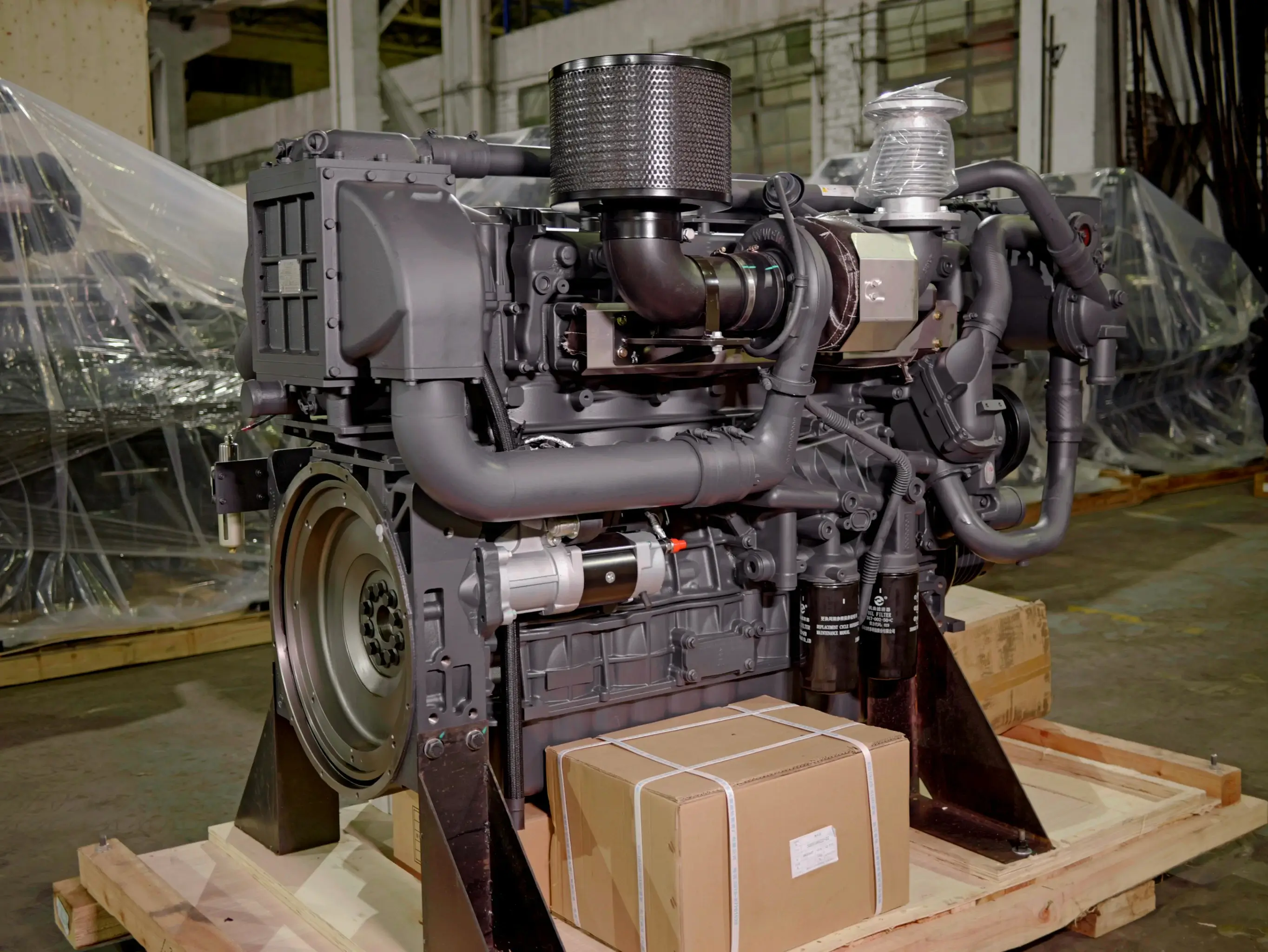

SDEC SC12E280.15CA2 Marine Engine
Prime Power : 202 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

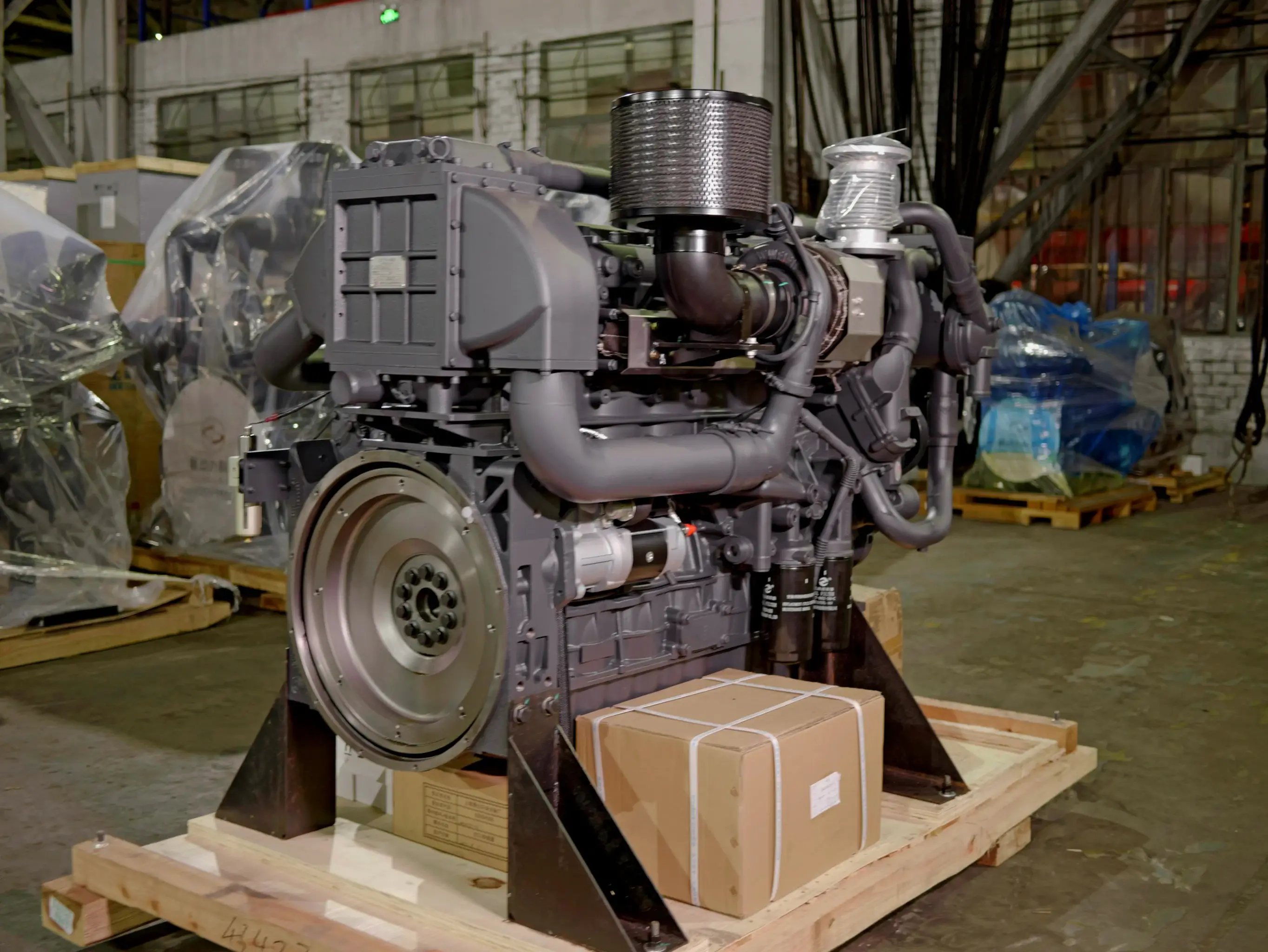

SDEC SC12E280.18CA2 Marine Engine
Prime Power : 202 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg
SDEC SC12E300.15CA2 Marine Engine
Prime Power : 215 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg
SDEC SC12E300.18CA2 Marine Engine
Prime Power : 215 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

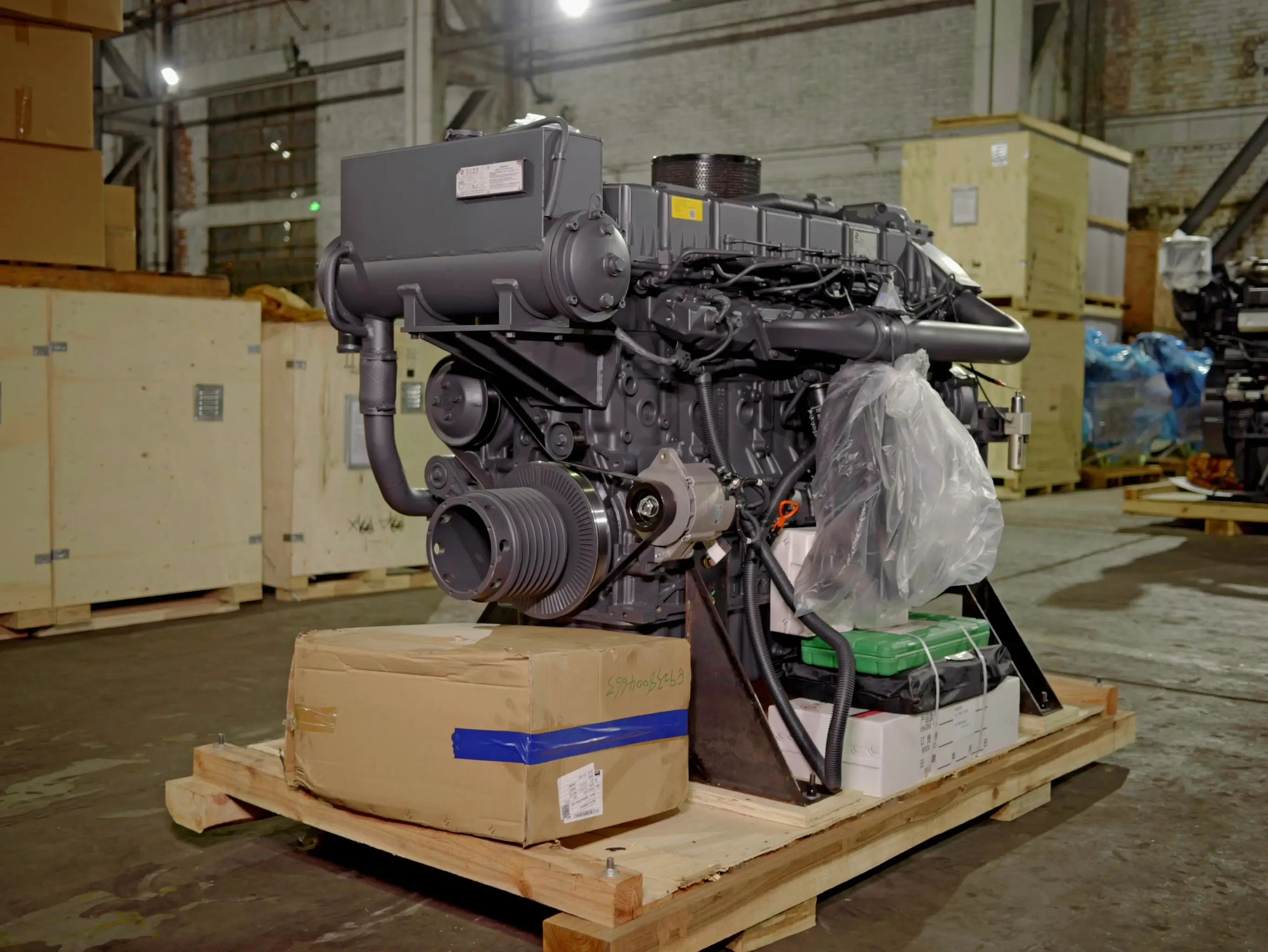

SDEC SC12E330.15CA2 Marine Engine
Prime Power : 238 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

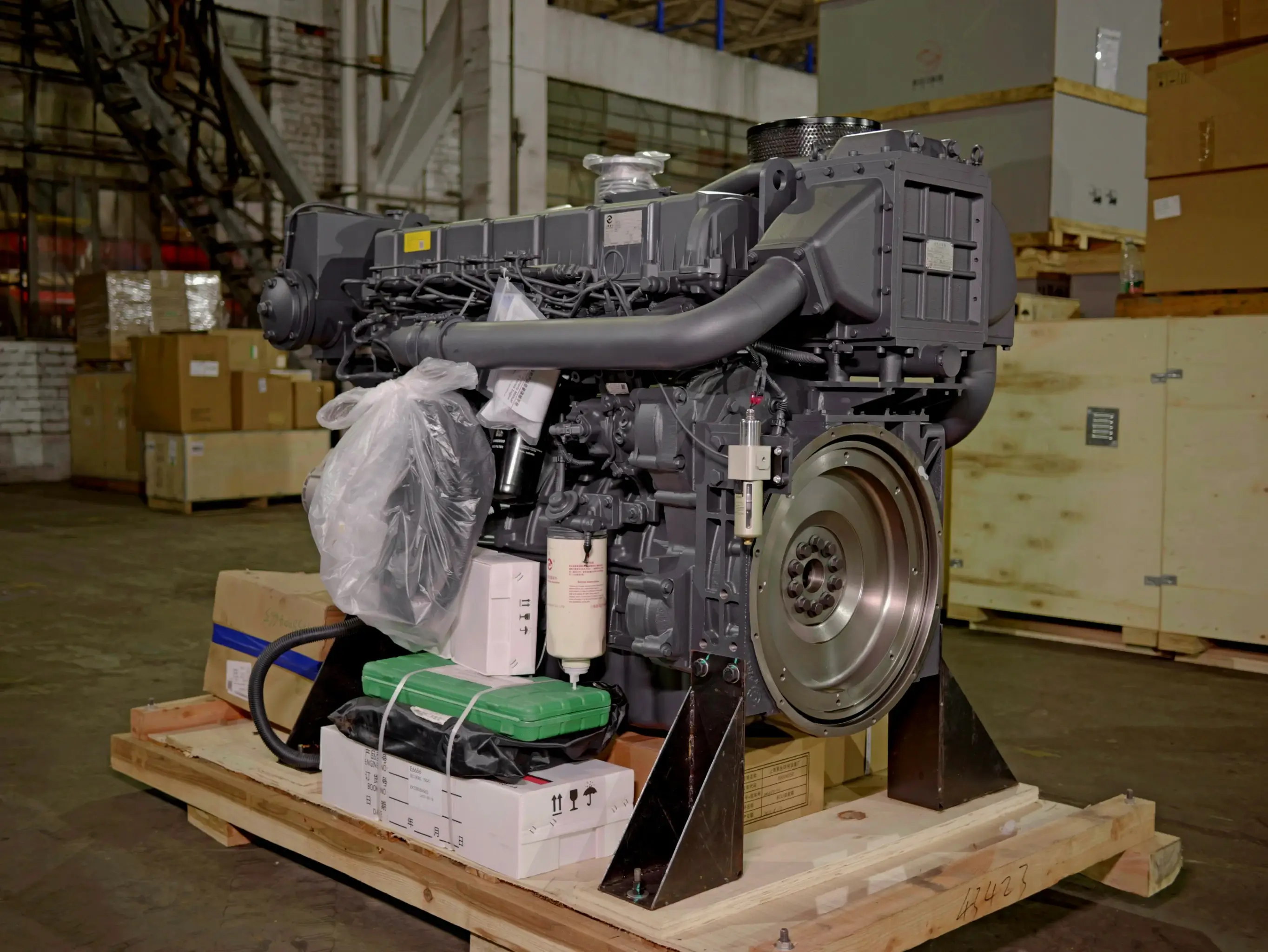

SDEC SC12E330.18CA2 Marine Engine
Prime Power : 238 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

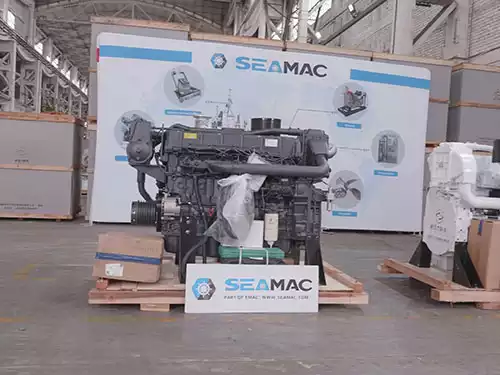

SDEC SC12E360.18CA2 Marine Engine
Prime Power : 260 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

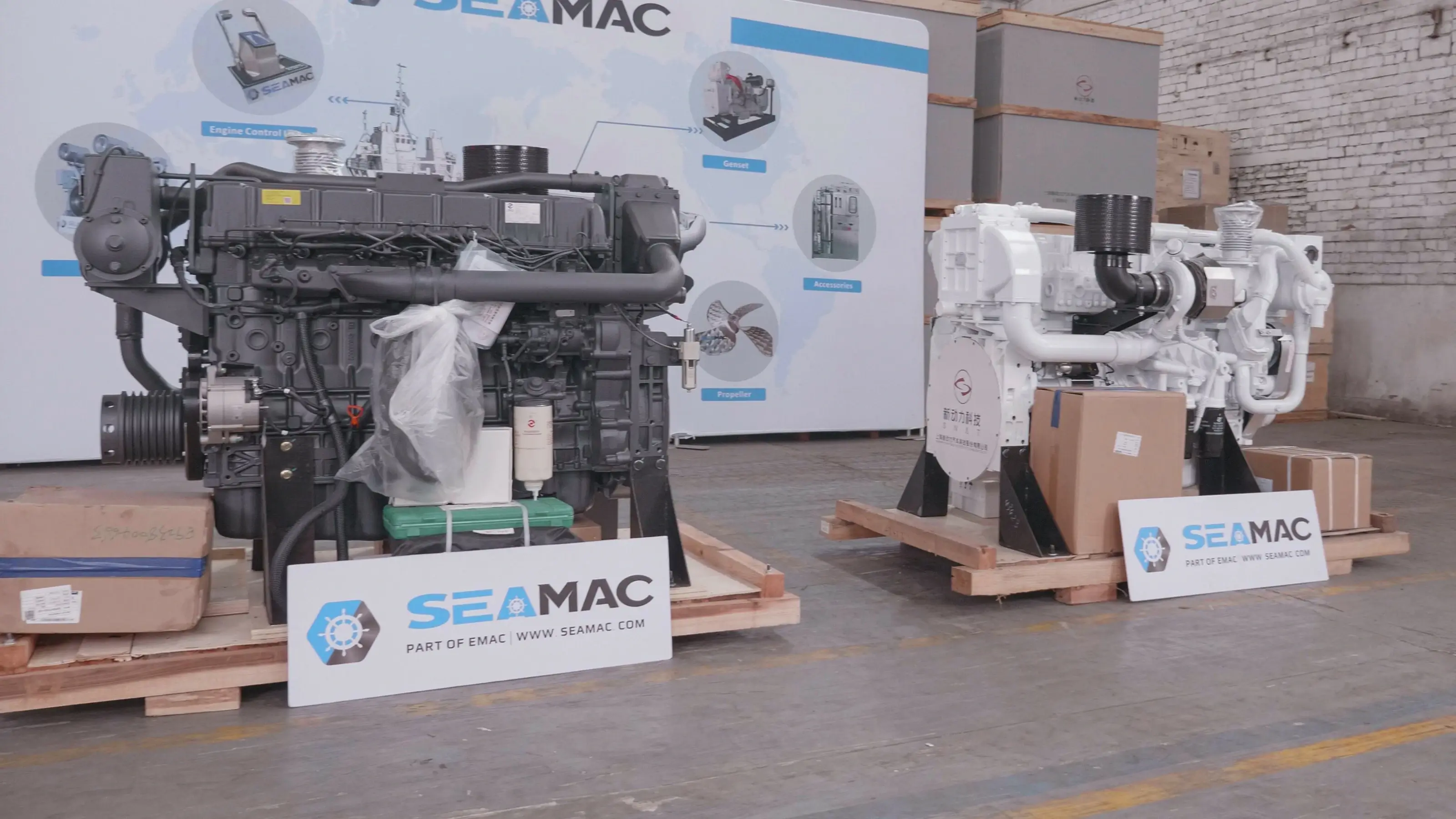

SDEC SC12E360.21CA2 Marine Engine
Prime Power : 260 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

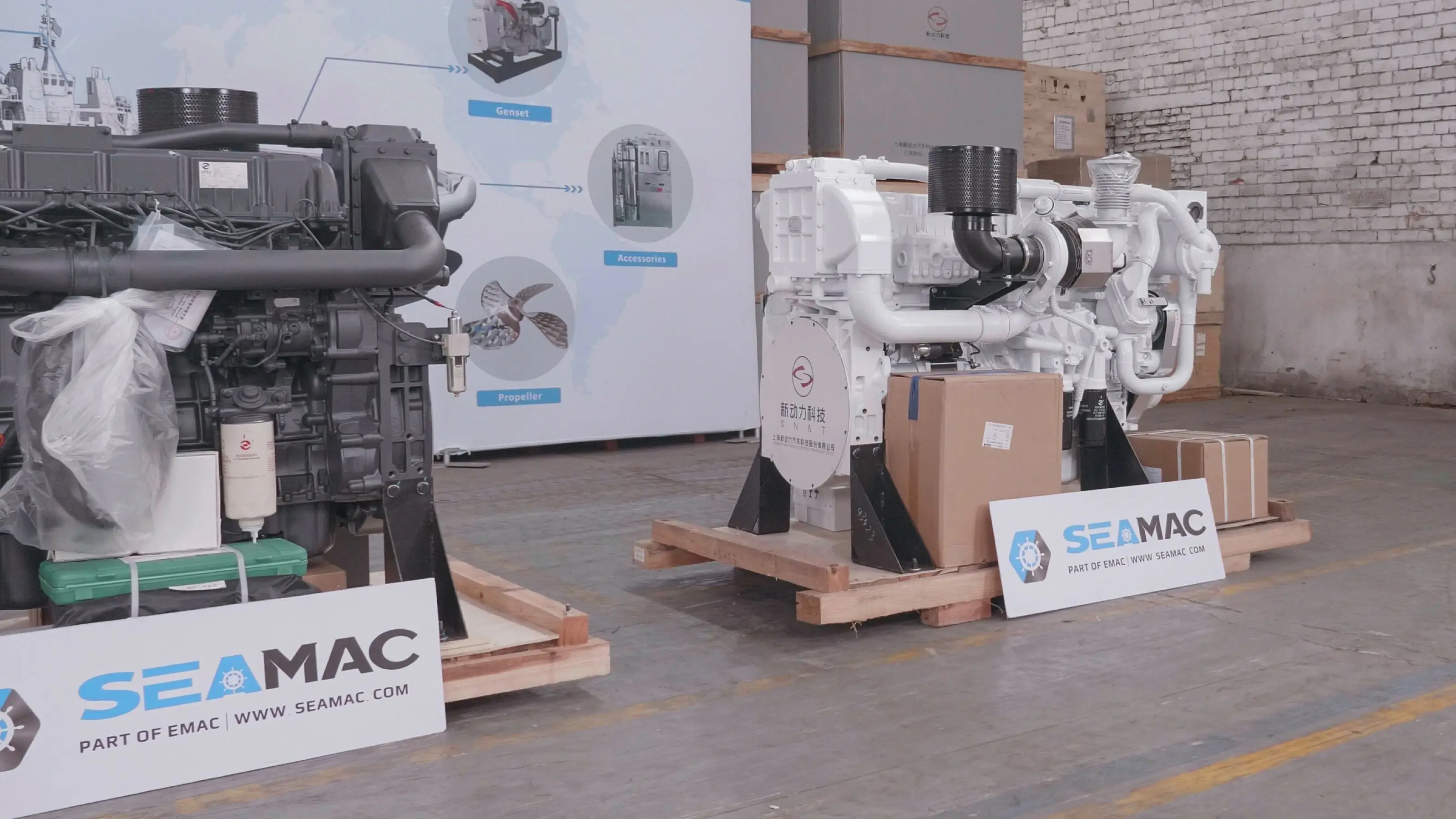

SDEC SC12E400.18CA2 Marine Engine
Prime Power : 288 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg
SDEC SC12E400.21CA2 Marine Engine
Prime Power : 288 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

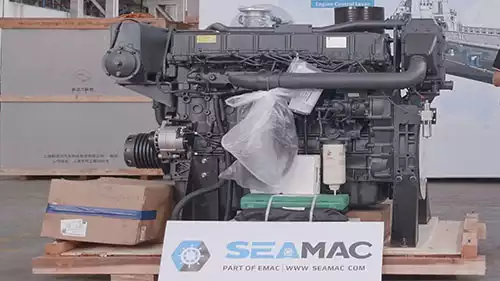

SDEC SC12E420.15CA2 Marine Engine
Prime Power : 265 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

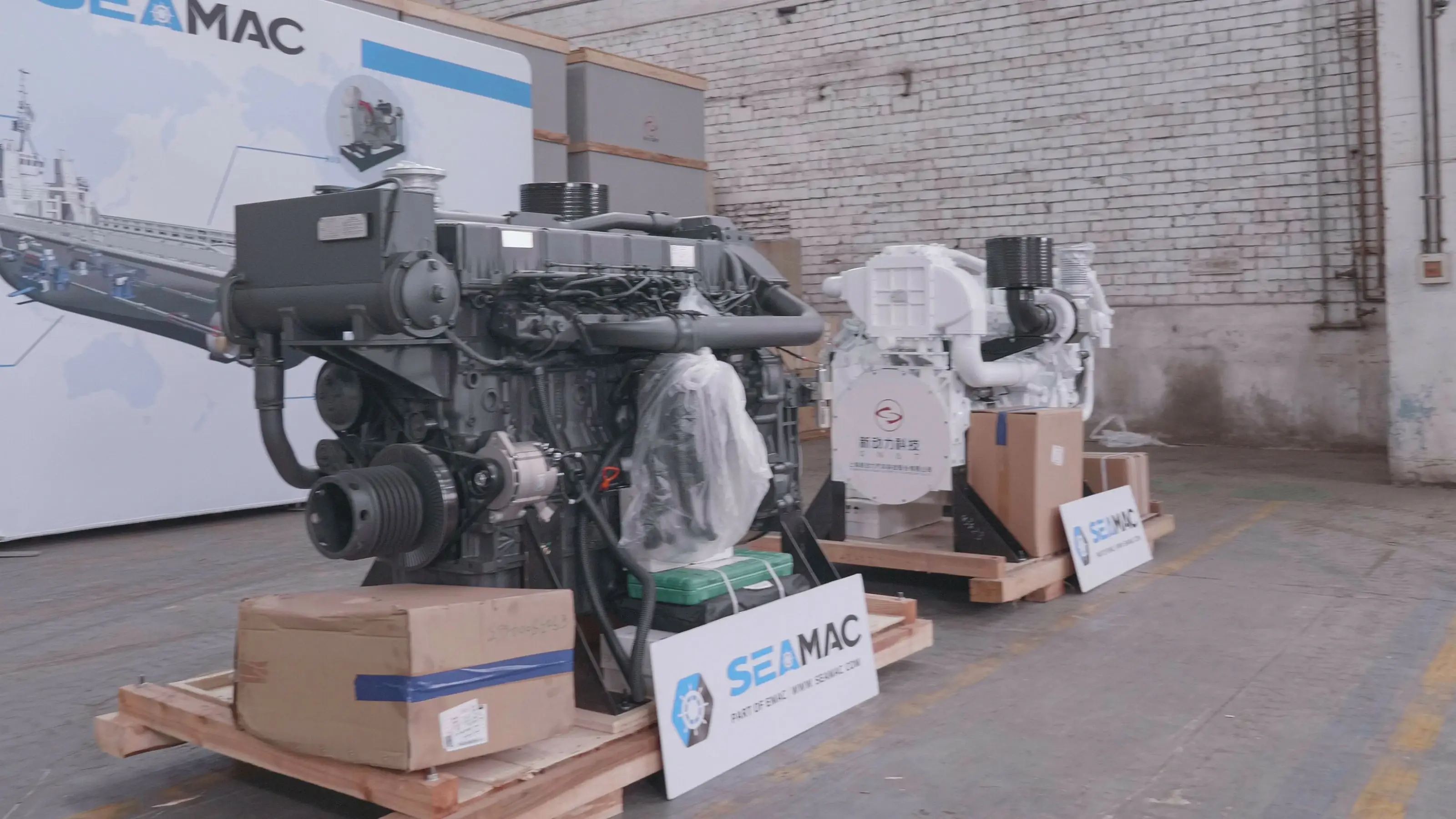

SDEC SC12E460.18CA2 Marine Engine
Prime Power : 340 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg
SDEC SC12E460.21CA2 Marine Engine
Prime Power : 334 kW @ 2100 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 11.8 L
Dry Weight : 1350 Kg

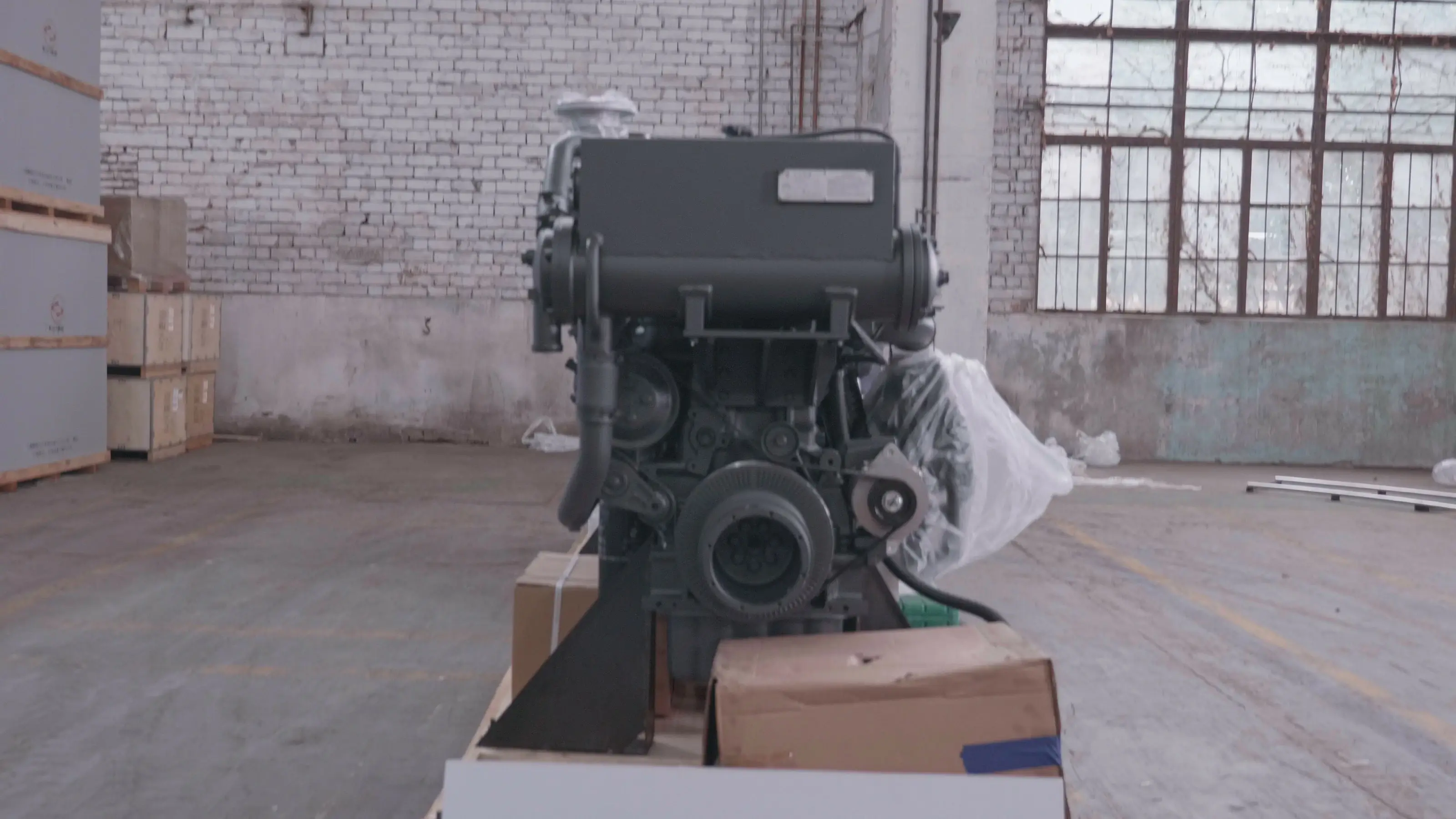

SDEC SC13E420.15CA2 Marine Engine
Prime Power : 308 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg
SDEC SC13E420.18CA2 Marine Engine
Prime Power : 308 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg

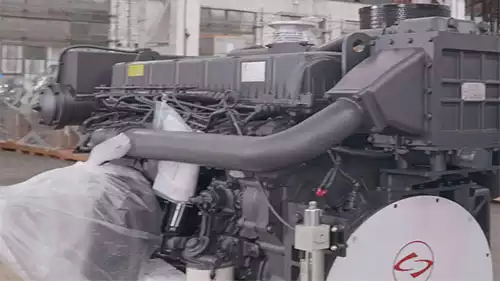

SDEC SC13E460.18CA2 Marine Engine
Prime Power : 334 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg
SDEC SC13E500.15CA2 Marine Engine
Prime Power :361 kW @ 1500 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg

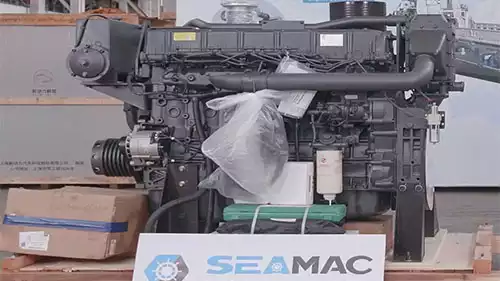

SDEC SC13E500.18CA2 Marine Engine
Prime Power :361 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg

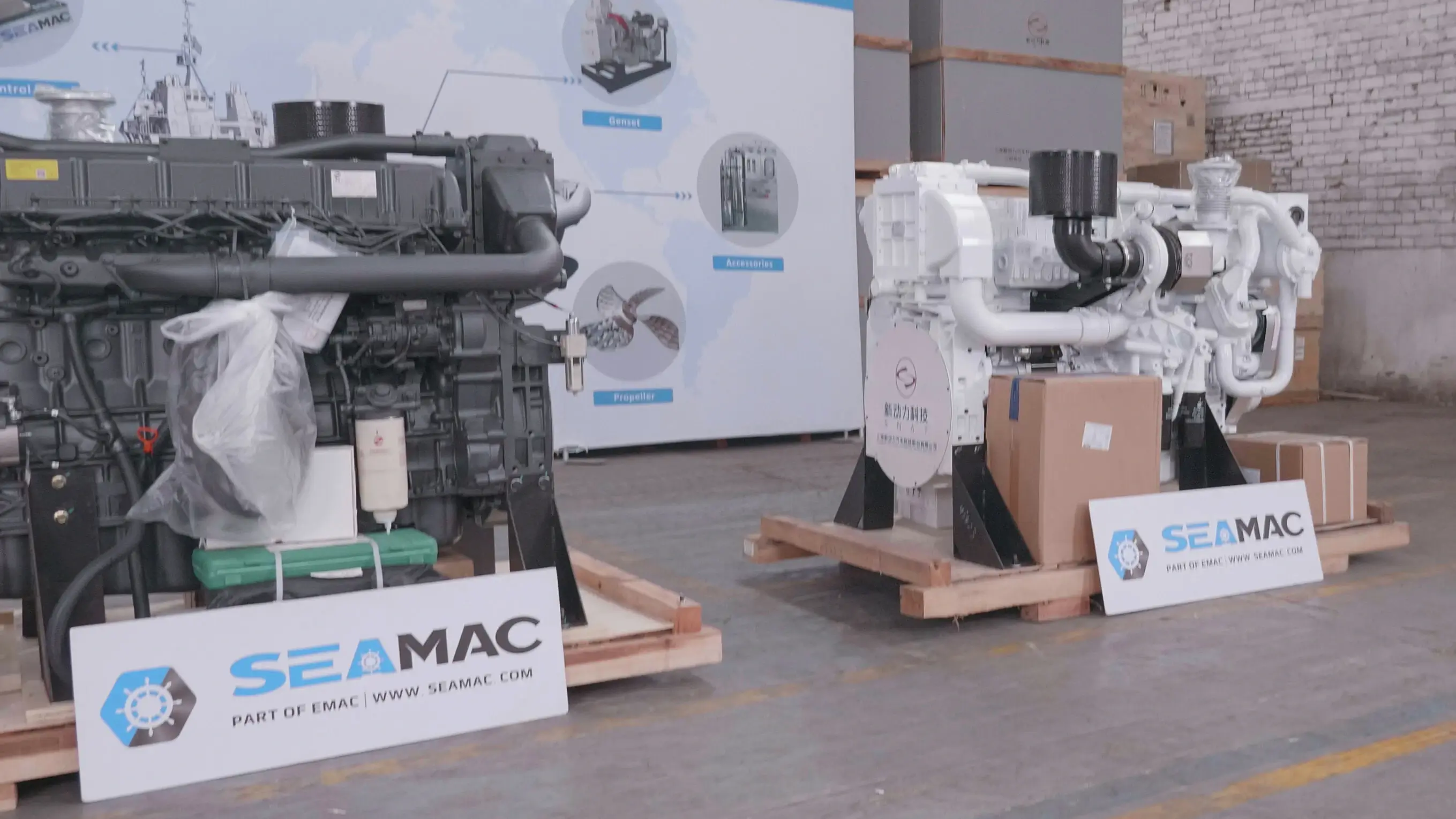

SDEC SC13E560.18CA2 Marine Engine
Prime Power :368 kW @ 1800 RPM
Number of Cylinders : 6
Aspiration : TC & Intercooled
Displacement : 12.8 L
Dry Weight : 1350 Kg
