CCEC KTA19 Marine Main Engine

CCEC K19-M series marine main engine is a 6-cylinders in line, 19 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC K19-M series marine main engine equipped with PT Fuel System, comes with turbocharger. The prime power range of CCEC K19-M series marine main engine is from 425 HP to 700 HP (317 kW to 522 kW). The torque range of the K19-M Series marine main engine is 1851 N.m to 2830 N.m.
CCEC marine main engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. Based on standard CCEC marine main engines, SeaMac provides both heat exchanger cooling and keel cooling marine main engines. SeaMac provides full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

CCEC-KTA19-Marine-Main-Engine-a4-510x382

CCEC-KTA19-Marine-Main-Engine-a3-510x382

CCEC-KTA19-Marine-Main-Engine-a5-510x382

CCEC-KTA19-Marine-Main-Engine-a6-510x382

CCEC-KTA19-Marine-Main-Engine-a2-510x382

Browser not compatible.

General Specifications of KTA19 Series

Engine Type:	6 Cylinders, in Line
Displacement:	19 L
*Bore Stroke:**	159 mm * 159 mm
Advertised Power:	425 – 700 HP @ 1800 – 2100 RPM
Peak Torque:	1851 – 2830 N.m @ 1400 – 1900 RPM
Rated Speed:	1800 – 2100 RPM
Emissision:	Euro II
Aspiration Method:	Turbocharged & Water – Air Intercooler
Dry Weight:	1634 – 2073 kg
Dimission Standards:	1573 mm * 796 mm * 1343 mm

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

CCEC KTA19 Marine Main Engine Catalogue
Engine Model	Rated Power	Aspiration	Engine Model	Rated Power	Aspiration

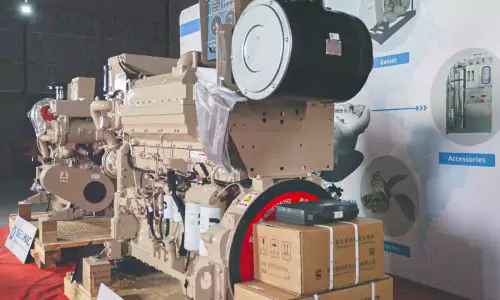

K19 – M500	500 HP @ 1800 RPM	Water – Air Intercooler	K19 – M550	550 HP @ 2100 RPM	Water – Air Intercooler
K19 – M600	600 HP @ 1800 RPM	Water – Air Intercooler	K19 – M640	640 HP @ 1800 RPM	Water – Air Intercooler

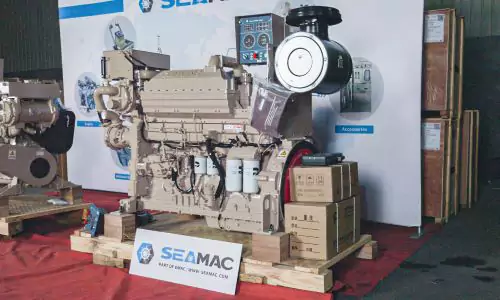

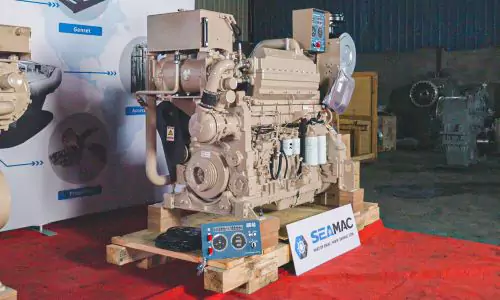

KT19 – M425	425 HP @ 1800 RPM	Turbocharged	KTA19 – M470	470 HP @ 1800 RPM	Water – Air Intercooler

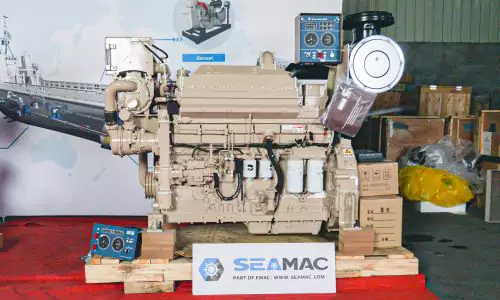

KTA19 – M500	500 HP @ 1800 RPM	Water – Air Intercooler	KTA19 – M550	550 HP @ 2100 RPM	Water – Air Intercooler

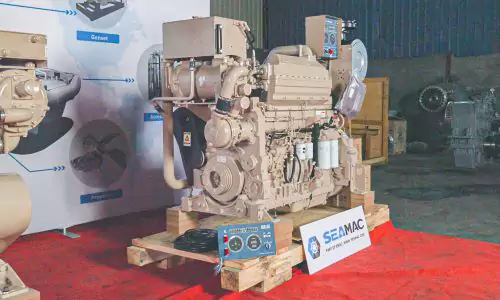

KTA19 – M3 – 500	500 HP @ 1800 RPM	Water – Air Intercooler	KTA19 – M600	600 HP @ 1800 RPM	Water – Air Intercooler

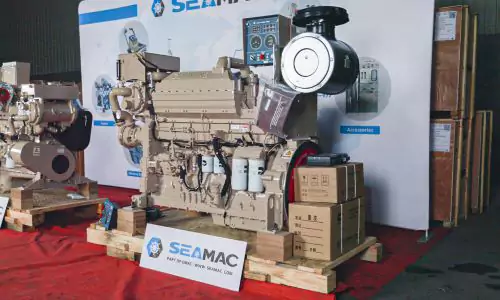

KTA19 – M640	640 HP @ 1800 RPM	Water – Air Intercooler	KTA19 – M700	700 HP @ 2100 RPM	Water – Air Intercooler
——END——
