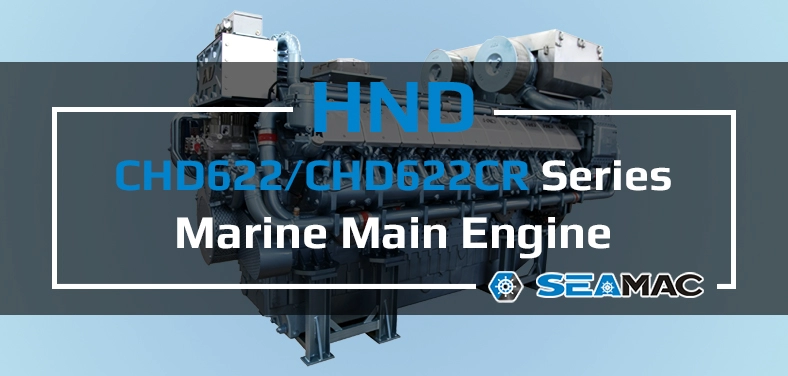

HND CHD622/CHD622CR DEUTZ-MWM Marine Main Engine
CHD622/CHD622CR DEUTZ-MWM Series marine main engine represents a propulsion power solution developed by HND based on a mature (DEUTZ) technology platform. It has gained widespread market recognition for its outstanding power performance, exceptional fuel economy, and superior operational reliability. This series is suitable for various types of government vessels, merchant ships, and engineering vessels, capable of meeting propulsion demands across different navigation zones. Equipped with advanced emission control technology, it easily complies with international environmental standards, providing ships with efficient and clean core power assurance.The product combines robust power, outstanding fuel efficiency, and extended service life. It not only delivers exceptional acceleration performance but also significantly reduces operating costs. Its outstanding structural reliability and full compliance with international environmental standards ensure efficient, economical, and compliant operation of vessels under all navigational conditions.
General Specifications of CHD622/CHD622CR DEUTZ-MWM Series
| Bore/Stroke : | 170/215 mm |
| Cylinder Arrangement : | V type, Angle 90 |
| Cylinder Numbers : |
L6 / V16 / V20 |
| Displacement : |
29.28 / 78.08 / 97.6 |
| Compression Ratio : | 14 : 1(mechanical pump) 15 : 1(CR) |
| Min.No Load Steady Speed(Idle Speed) : | 600~750 r/min |
| Ignition Speed(20℃) : | 150 r/min |
| Rotation Direction : | Anti-clockwise rotation(from flywheel end) |
| Lube Oil Consumption : | ≤1.3 g/kW·h |
| 690-870 kW | CHD622L6 | |||||||
| 690-870 kW | CHD622L6CR | |||||||
| 1840-2320 kW | CHD622V16 | |||||||
| 1840-2320 kW | CHD622V16CR | |||||||
| 2500-2900 kW | CHD622V20 | |||||||
| 2600-3270 kW | CHD622V20CR | |||||||
|
Engine Model Rated Power/kW |
600 | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3400 |
Engine Model |
Rated power |
Fuel consumption |
Engine Model |
Rated power |
Speed r/min |
||
| CHD622L6 | 690-870 kW | 205-210 g/kW·h | CHD622L6CR | 690-870 kW | 205-210 g/kW·h | ||
| CHD622V16 | 1840-2320 kW | 200-210 g/kW·h | CHD622V16CR | 1840-2320 kW | 200-210 g/kW·h | ||
| CHD622V20 | 2500-2900 kW | 198-200 g/kW·h | CHD622V20CR | 2600-3270 kW | 205-210 g/kW·h | ||
| ——END—— | |||||||
HND CHD622/CHD622CR DEUTZ-MWM Series Marine Main Engine
This is the list of all series of HND CHD622/CHD622CR DEUTZ-MWM Series Marine Main Engine.
HND DEUTZ-MWM CHD622L6 Marine Main Engine
Engine Model: CHD622L6
Rated Power: 690-870 kW
Fuel Consumption: 205-210 g/kW·h
Speed: 1500-1750 r/min
Emission: TierⅡ/TierⅢ
HND DEUTZ-MWM CHD622L6CR Marine Main Engine
Engine Model: CHD622L6CR
Rated Power: 690-870 kW
Fuel Consumption: 205-210 g/kW·h
Speed: 1500-1750 r/min
Emission: C1/C2
HND DEUTZ-MWM CHD622V16 Marine Main Engine
Engine Model: CHD622V16
Rated Power: 1840-2320 kW
Fuel Consumption: 200-210 g/kW·h
Speed: 1500-1750 r/min
Emission: TierⅡ/TierⅢ
HND DEUTZ-MWM CHD622V16CR Marine Main Engine
Engine Model: CHD622V16CR
Rated Power: 1840-2320 kW
Fuel Consumption: 200-210 g/kW·h
Speed: 1500-1750 r/min
Emission: C1/C2
HND DEUTZ-MWM CHD622V20 Marine Main Engine
Engine Model: CHD622V20
Rated Power: 2500-2900 kW
Fuel Consumption: 198-200 g/kW·h
Speed: 1500-1750 r/min
Emission: TierⅡ/TierⅢ
HND DEUTZ-MWM CHD622V20CR Marine Main Engine
Engine Model: CHD622V20CR
Rated Power: 2600-3270 kW
Fuel Consumption: 205-210 g/kW·h
Speed: 1500-1750 r/min
Emission: C1/C2
