CCEC NTA855 Marine Auxiliary Engine
CCEC NTA855-DM series marine auxiliary engine is 6-cylinder inline, 14 liters four-strokes engine with 140 mm (5.5 in) bore and 152 mm (6.0 in) stroke. CCEC NTA855-DM series marine auxiliary engine equipped with PT Fuel System, comes with turbocharger. The power range of CCEC NTA855-DM series marine auxiliary engine is from 241 HP to 425 HP (180 kW to 317 kW). The torque range of the NTA855-DM Series marine auxiliary engine is 1260 N.m to 2234 N.m.
CCEC marine auxiliary engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. All CCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.
General Specifications of NTA855 Series
| Engine Type: | In Line / 6 Cylinders / 4 Stroke / 4 Valve |
| Displacement: | 14 L |
| Bore * Stroke: | 140 mm * 152 mm |
| Advertised Power: | 180 – 317 kW @ 1500 – 1800 RPM |
| Peak Torque: | 1260 – 2234 N.m @ 1500 – 1800 RPM |
| Rated Speed: | 1500 – 1800 RPM |
| Emissision: | Euro II |
| Aspiration Method: | Turbocharged & Water – Air Intercooler |
| Dry Weight: | 1270 – 1315 kg |
| Dimission Standards: | 1534 mm * 781 mm * 1355 mm |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
| CCEC NTA855 Marine Auxiliary Engine Catalogue | ||||||
Engine Model | Rated Power | Aspiration | Engine Model | Rated Power | Aspiration | |
| N855 – DM240 | 240 kW (321 HP) @ 1500 RPM | LTA | N855 – DM284 | 284 kW (380 HP) @ 1500 RPM | LTA | |
| N855 – DM287 | 287 kW (385 HP) @ 1800 RPM | LTA | N855 – DM313 | 313 kW (420 HP) @ 1800 RPM | LTA | |
| N855 – DM317 | 317 kW (425 HP) @ 1500 RPM | LTA | NT855 – D(M)180 | 180 kW (241 HP) @ 1500 RPM | Turbocharged | |
| NT855 – D(M)205 | 205 kW (275 HP) @ 1500 RPM | Turbocharged | NT855 – D(M)230 | 230 kW (308 HP) @ 1500 RPM | Turbocharged | |
| NTA855 – D(M)240 | 240 kW (322 HP) @ 1500 RPM | Water – Air Intercooler | NTA855 – D(M)264 | 264 kW (354 HP) @ 1500 RPM | Water – Air Intercooler | |
| NTA855 – D(M)284 | 284 kW (380 HP) @ 1500 RPM | Water – Air Intercooler | NTA855 – D(M)287 | 287 kW (385 HP) @ 1800 RPM | Water – Air Intercooler | |
| NTA855 – D(M)306 | 306 kW (410 HP) @ 1800 RPM | Water – Air Intercooler | NTA855 – D(M)313 | 313 kW (420 HP) @ 1800 RPM | Water – Air Intercooler | |
| NTA855 – D(M)317 | 317 kW (425 HP) @ 1500 RPM | Water – Air Intercooler | ||||
| ——END—— | ||||||
CCEC NTA855 Series Marine Auxiliary Engine
This list including all models of CCEC NTA855 Series Marine Auxiliary Engine.
Click here to find marine engines by type (Fuel System & Power Range).
CCEC N855-DM240 Auxiliary Engine
Power: 240 kW (321 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A
CCEC N855-DM284 Auxiliary Engine
Power: 284 kW (380 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A
CCEC N855-DM287 Auxiliary Engine
Power: 287 kW (385 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A
CCEC N855-DM313 Auxiliary Engine
Power: 313 kW (420 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A
CCEC N855-DM317 Auxiliary Engine
Power: 317 kW (425 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A
CCEC NT855-D(M)180 Auxiliary Engine
Power: 180 kW (241 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A
CCEC NT855-D(M)205 Auxiliary Engine
Power: 205 kW (275 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

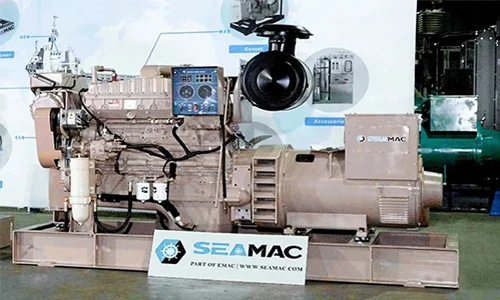

CCEC NT855-D(M)230 Auxiliary Engine
Power: 230 kW (308 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A
CCEC NTA855-D(M)240 Auxiliary Engine
Power: 240 kW (322 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC& Water-Air Intercooler
Emission Standard: N/A

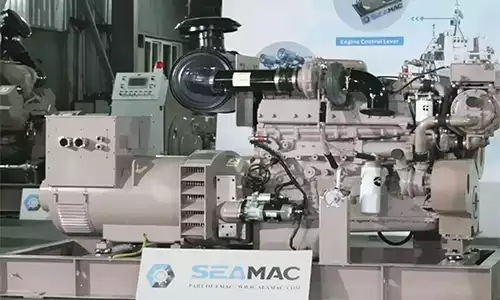

CCEC NTA855-D(M)264 Auxiliary Engine
Power: 264 kW (354 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
CCEC NTA855-D(M)284 Auxiliary Engine
Power: 284 kW (380 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
CCEC NTA855-D(M)287 Auxiliary Engine
Power: 287 kW (385 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

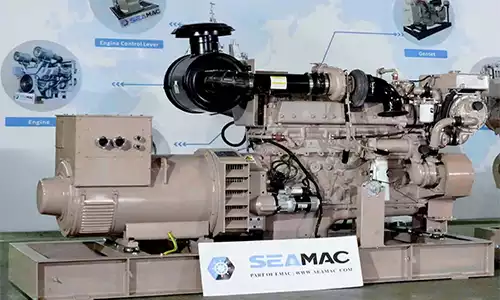

CCEC NTA855-D(M)306 Auxiliary Engine
Power: 306 kW (410 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
CCEC NTA855-D(M)313 Auxiliary Engine
Power: 313 kW (420 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
CCEC NTA855-D(M)317 Auxiliary Engine
Power: 317 kW (425 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
