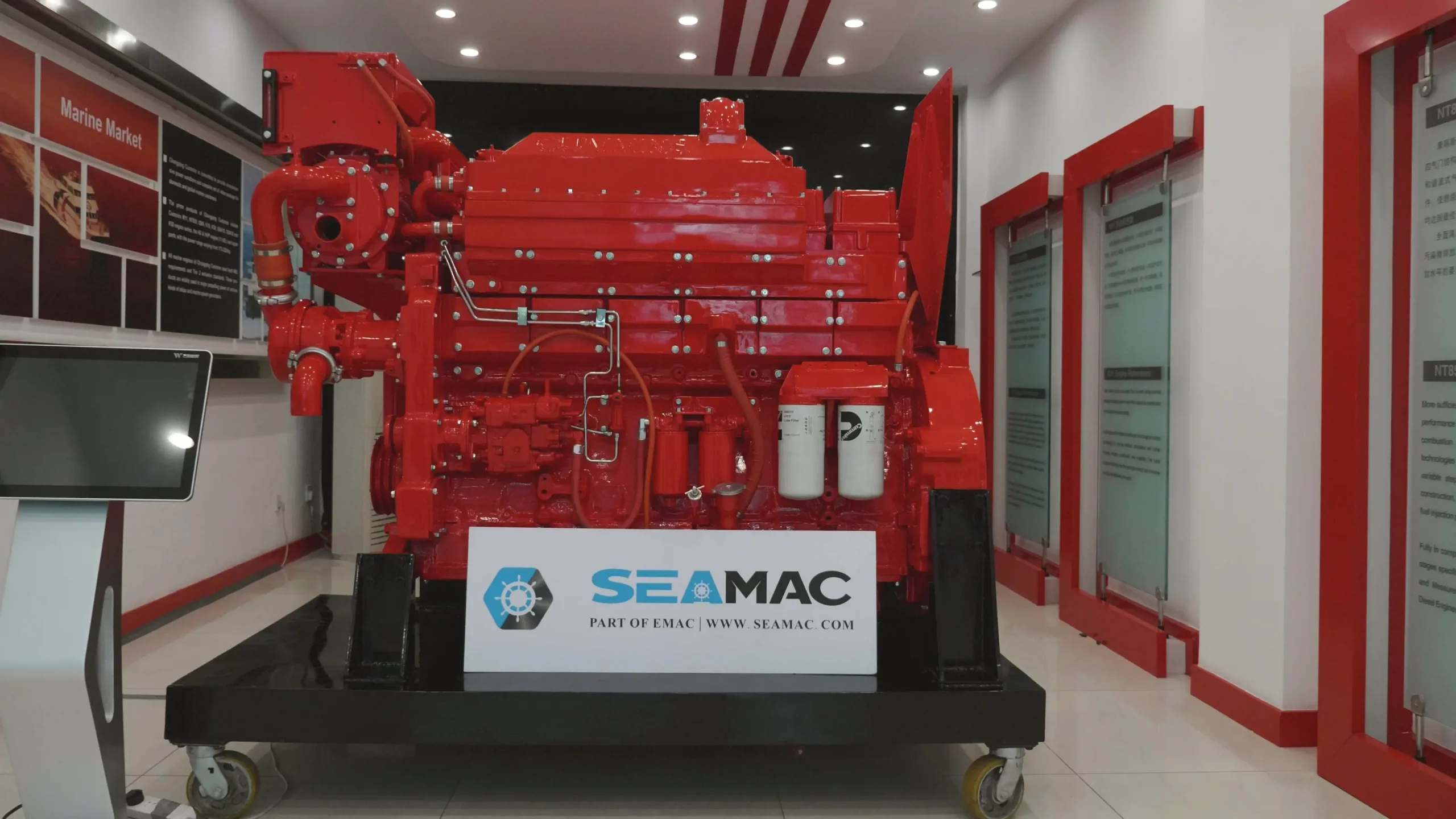

CCEC KTA50 Marine Auxiliary Engine

CCEC K50-DM series marine auxiliary engine is V Type 16-cylinder, 50 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC K50-DM series marine auxiliary engine equipped with PT Fuel System, comes with turbocharger. The power range of CCEC K50-DM series marine auxiliary engine is from 1470 HP to 1730 HP (1097 kW to 1290 kW). The torque range of the K50-DM Series marine auxiliary engine is 7516 N.m to 7690 N.m.
CCEC marine auxiliary engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. All CCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Coming Soon

General Specifications of KTA50 Series

Engine Type:	V-16 Cylinders / 4 Stroke / 4 Valve
Displacement:	50 L
*Bore Stroke:**	159 mm * 159 mm
Advertised Power:	1097 – 1290 kW @ 1500 – 1800 RPM
Peak Torque:	7516 – 7690 N.m @ 1500 – 1800 RPM
Rated Speed:	1500 – 1800 RPM
Emissision:	Euro II
Aspiration Method:	Turbocharged & Water-Air Intercooler
Dry Weight:	4851 kg
Dimission Standards:	2794 mm * 1507 mm * 1846 mm

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

CCEC KTA50 Marine Auxiliary Engine Catalogue
Engine Model	Rated Power	Aspiration	Engine Model	Rated Power	Aspiration
K50 – DM1097	1097 kW (1470 HP) @ 1500 RPM	Water-Air Intercooler	K50 – DM1290	1290 kW (1730 HP) @ 1800 RPM	Water-Air Intercooler
