CCEC KTA19 Marine Auxiliary Engine

CCEC K19-DM series marine auxiliary engine is a 6-cylinders in line, 19 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC K19-DM series marine auxiliary engine equipped with PT Fuel System, comes with turbocharger. The power range of CCEC K19-DM series marine auxiliary engine is from 450 HP to 680 HP (336 kW to 507 kW). The torque range of the K19 Series marine auxiliary engine is 2349 N.m to 3208 N.m.

CCEC marine auxiliary engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. All CCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Coming Soon

General Specifications of KTA19 Series

Engine Type:In Line / 6 Cylinders / 4 Stroke / 4 Valve
Displacement:19 L
Bore * Stroke:159 mm * 159 mm
Advertised Power:336 – 507 kW @ 1500 – 1800 RPM
Peak Torque:2349 – 3208 N.m @ 1500 – 1800 RPM
Rated Speed:1500 – 1800 RPM
Emissision:Euro II
Aspiration Method:Turbocharged & Water-Air Intercooler
Dry Weight:1634 kg
Dimission Standards:1573 mm * 796 mm * 1343 mm
CCEC KTA19 Marine Auxiliary Engine Catalogue

Engine Model

Rated Power

Aspiration

Engine Model

Rated Power

Aspiration

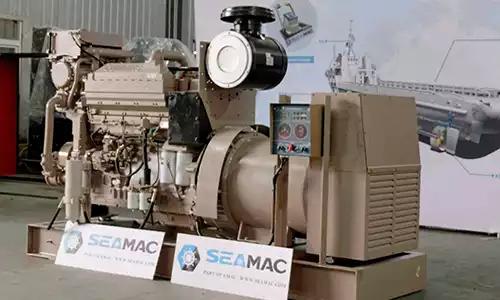

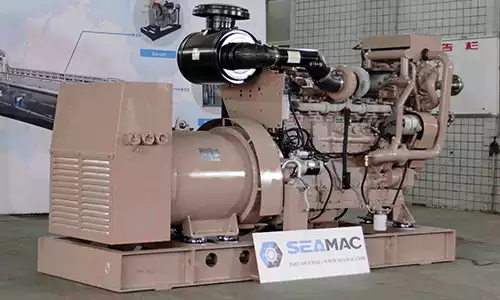

KTA19 – D(M)336 336 kW (450 HP) @ 1500 RPMWater-Air IntercoolerKTA19 – D(M)392 392 kW (525 HP) @ 1800 RPMWater-Air Intercooler

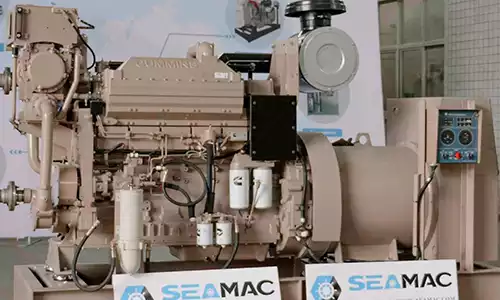

KTA19 – D(M)403 403 kW (540 HP) @ 1500 RPM Water-Air IntercoolerKTA19 – D(M)448 448 kW (600 HP) @ 1500 RPMWater-Air Intercooler

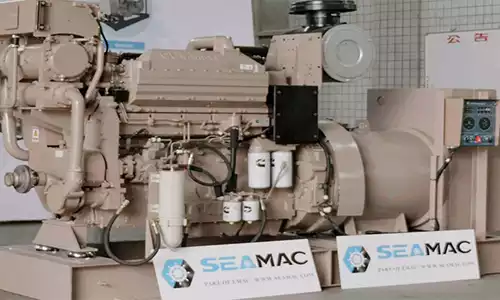

KTA19 – D(M)463 463 kW (620 HP) @ 1800 RPMWater-Air IntercoolerKTA19 – D(M)507 507 kW (680 HP) @ 1800 RPM Water-Air Intercooler
——END——

CCEC KTA19 Series Marine Auxiliary Engine

This list including all models of CCEC KTA19 Series Marine Auxiliary Engine.
